Click Image for Gallery

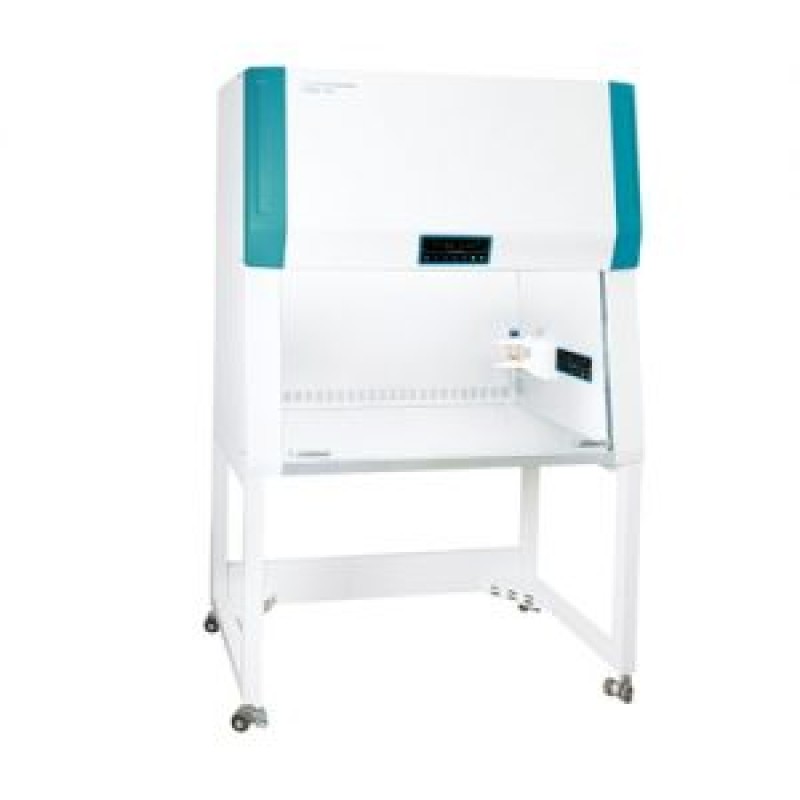

Clean Benches (Advanced)
Product Features:
- Vertical laminar flow clean benches with advanced digital control and various convenient features
- ISO class 4 air cleanliness as per ISO 14644-1
- Class 10 as per US Federal Standard 209E
- Nominal downflow velocity (max. 0.45 m/sec)
Performance
- ISO class 4 (US class 10) HEPA filter for optimal protection against cross-contamination
- 3 μm and larger particulates are removed with 99.99% efficiency, leak-tight HEPA filter which satisfying class 10 (US Federal Standard 209E)
- (average life span of HEPA filter: 3 years – it depends on the test room conditions)
- High-quality polyester fiber pre filter (with minimal pressure loss and 85% arrestant on the A.F.I. test) for trapping larger particles and increasing the life of the main HEPA filter
- Digital airflow rate sensor (microprocessor) for automated airflow speed control
- Offers continual airflow speed of same velocity and extends the HEPA filter life span
- Exclusive diffusing muffler structure forms high quality laminar flow
- Quiet and comfortable working environment (less than 65dB)
Convenience
- Interlocking smart door system
- Simply open the door while UV-lamp is on. Interlocking smart door system will automatically turn off UV-lamp, turn on fluorescent lamp and blower instead of your manual control
- Two digital displays for the best convenience
– Even if any
Product Description :
| Model | BC-01H | BC-11H | BC-21H | |
| Air flow type | Vertical laminar flow | |||
| Air volume (minimum / maximum) | 0 to 1020 cmh / 0 to 600 cfm | 0 to 2040 cmh / 0 to 1200 cfm | ||
| Laminar airflow velocity (m / s / fpm) | 0.3 / 59 | 0.45 / 89 | 0.3 / 59 | |
| Air cleanliness within work space | ISO 14644-1 class 4, US Federal Standard 209E class 10 | |||
| Filters | HEPA filter | Typical efficiency of 99.99% on 0.3㎛ (US MIL – STD -282) ; Micro glass fiber Media, Particle board, AL separator, Neoprene gaskets | ||
| Pre filter | Polyester fibers with an filter efficiency of 85% (A·F·I TEST) ; Aluminum frame, Polyester fiber media | |||
| Noise level | Typically < 65dB at blower speed | |||
| Materials | Main body | Steel powder coating | ||
| Work surface | Stainless steel grade 304, Hairline treatment | |||
| Windows (front / side) | Colorless and transparent UV absorbing 5mm tempered glass | |||
| Illumination | Intensity (lux) | > 650 | ||
| Fluorescent lamp (W) | 30 x 2ea | 32 x 2ea | ||
| Electronically ballasted Fluorescent Lamp | ||||
| UV lamp (W) | 25 x 1ea | 30 x 1ea | 25 x 2ea | |
| Electronically ballasted UV Lamp | ||||
| Electric socket outlets | 230V socket | |||
| Dimension (W×D×H) | Interior (mm / inch) | 945×570×670/37.2×22.4×26.4 | 1245×570×670/49.0×22.4×26.4 | 1845×570×670/72.6×22.4×26.4 |
| Exterior without stand (mm / inch) | 1135×647×1150/44.7×25.5×45.3 | 1435×647×1150/56.5×25.5×45.3 | 2035×647×1150/80.1×25.5×45.3 | |
| Exterior with stand(mm / inch) | 1135×647×1870/44.7×25.5×73.6 | 1435×647×1870/56.5×25.5×73.6 | 2035×647×1870/80.1×25.5×73.6 | |
| Net weight(body)(kg / lbs) | 140/308.6 | 185/407.9 | 225/496 | |
| Net weight (body + stand) (kg / lbs) | 170/ 374.8 | 215/ 474 | 255/ 562.2 | |
| Electrical requirements (230V, 1ph) | 50Hz / 1.38 A | 50Hz / 1.73 A | 50Hz / 2.30 A | |
| Cat. No. | AAHA5012K | AAHA5022K | AAHA5032K | |
