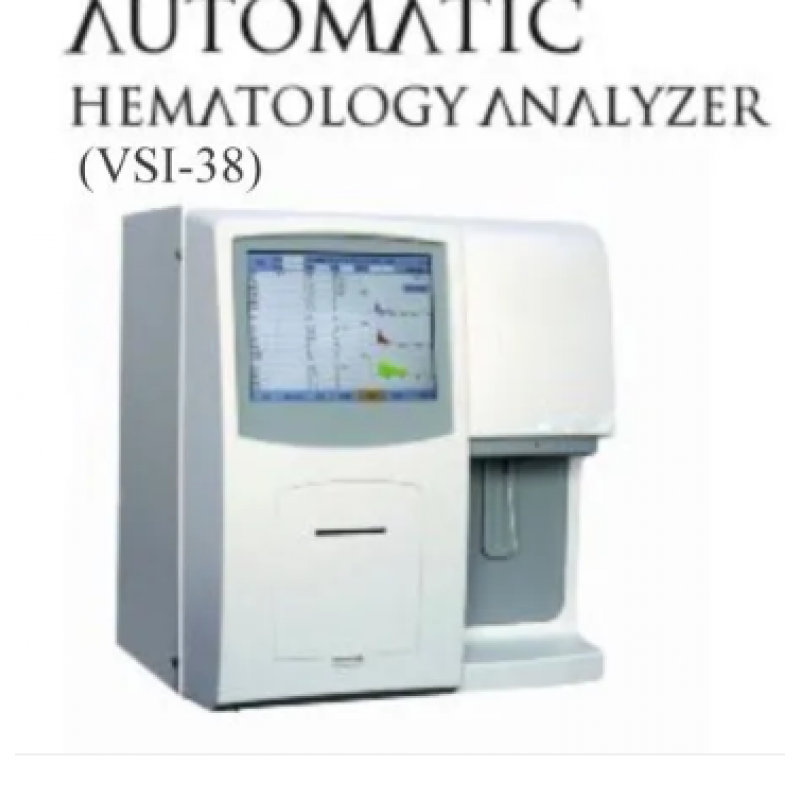

Fully Automatic Hematology Analyzer

Instrument Name	Haematology Analyzer
Usage/Application	Clinical
Automation	Fully Automatic
Brand	VSI
User Input	Touch
Model Name/Number	Fully Automatic Hematology Analyzer VSI-38
Display	Digital
Sample Volume	Venous Mode: 10iL Venous Blood, Capillary Mode: 10iL Capillary Blood, Prediluted Mode: 20iL Capillar
Storage	100,000 Sample Results with Histograms
No. Of Reagents Used	Lyse (500ml) and Diluent (20L)
Calibration	Manual and Auto-Calibration
Measuring Principle	Principle Impedance for Cell Counting Cyanide-free method for HGB
Power	AC 100-240 V, 50/60 +/- 1 Hz
Temperature	18 ~ 35 Deg.C
Histograms	WBC, RBC, PLT Histogram
Languages	English, Spanish, Italian, Portuguese, etc.
Quality Control	3 Level QC, LJ Graph
Resolution	800 600
Printout	Thermal Printer, Support External Printer
Size	410 x 435 x 472 mm. Approx.

Fully Automatic Hematology Analyzer (Double Chamber), Model (VSI-38), for complete blood count using principle of electrical resistance for count & SFT Method for HGB.  Accurate & reliable results using digital filtering, blood cell overlap calibration dual way high pressure cleaning, to avoid aperture blocking. Electro hydraulic separation structure design alarm function, auto wiping/cleaning of sample needle.  Large storage up to 30,000 result with histogram.  Easy operation using touch screen with 640x480 LCD Display.  Automatic sample sipping, mixing, testing & cleaning, in-built thermal printer and external printer Optional.
