Product Description

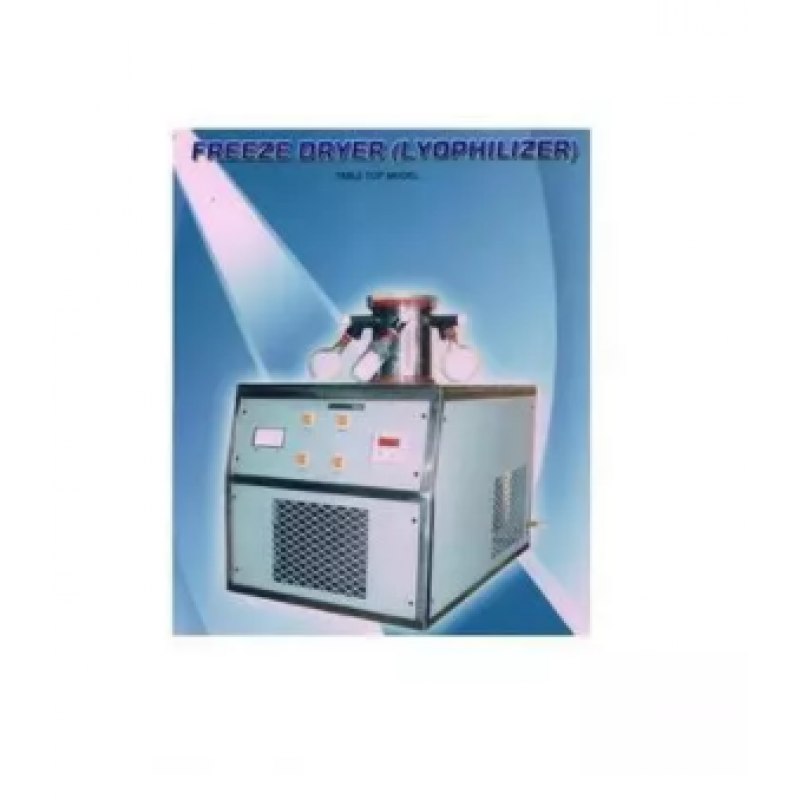

We provide our clients Freeze Dryer (Lyophilizer). Freeze Dryer with ice condenser temp at -40/-70/-80ËC cap. 2-6 liters (Liquid load approx) capable of holding six nos. or more round bottom flasks cap 500 ml each with adopter) at a time. The machine has a powerful air cooled cascade, CFC free, PUF insulated refrigeration system attached to a round shaped S.S manifold having six nos. or more ¾& three nos. or more of ½ neoprene rubber ports for loading. The system has S.S frame with powder coated side panels & casters for easy mobility.
SPECIAL FEATURES
ICE CONDENSER CAP. & TEMP: 2-6 Liters & -40/-70/-80 ËC.
TEMP. & VACUUM MONITORING: Digital Display of ice trap temp. & pirani gauge for vacuum microns without load, and 20-30 microns on load during freeze drying.
VACUUM PUMP: Direct Drive 100/180 LPM with anti suck back device ultimate vacuum 10 microns without load & 20-30 microns on load during freeze drying.
LOADING CHAMBER: Round shaped drying manifold (6â- 9â D, 8â-10â H) with rubber ports, adopters âOâ ring &see through perspex lid.
AUTO STARD FOR VACUUM PUMP: Built in auto start for vacuum pump at -30ËC/-35ËC or -50ËC to -55ËC condenser temp. ( Vacuum pump & condenser interlock for better life vacuum pump)
ELECTRICAL & SAFETY SYSTEM: The MCBâs are provided with all the important components like compressor and vacuum pump. Replaceable connectors are used for wiring approx electrical load 2 KVA, 220 V, 50 cycles.
