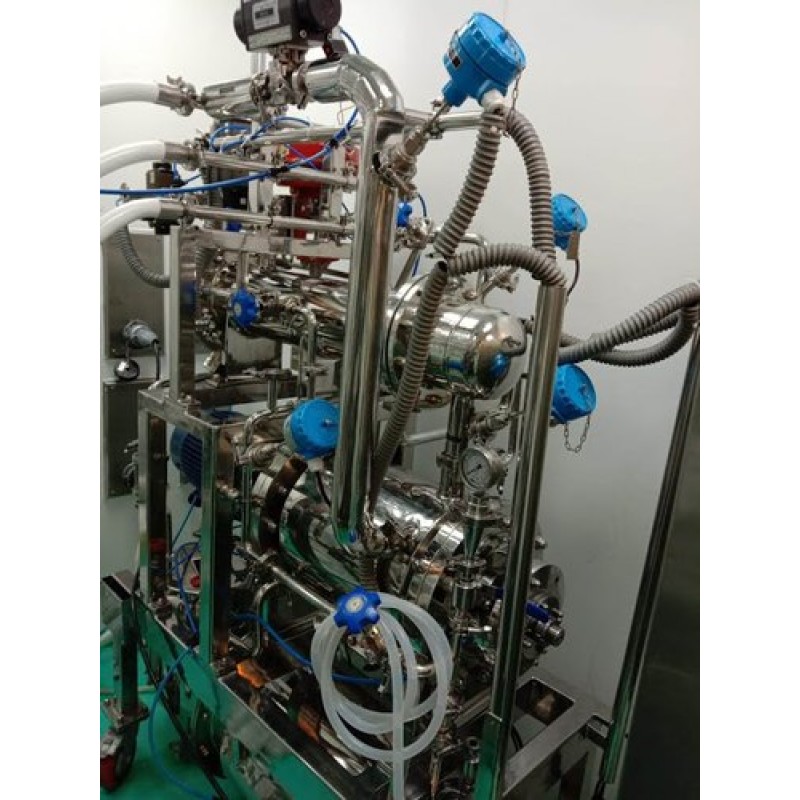

Forced Circulation Evaporator

Product Details:

Frequency	50
Phase	3
Automation Grade	Automatic
Material	SS304 / SS316
Voltage	430
Capacity	Various
Country of Origin	Made in India

Force is used to drive the liquid through the evaporator tubes thus producing high tube velocities. A high efficiency circulating pump, designed for large volume and sufficient head, is used to supply the force. Proper design results in controlled temperature rise, controlled temperature difference and tube velocities that give optimum heat transfer.

Forced Circulation Evaporators are recommended for viscous, scaling and salting liquids. As the liquid is only heated in the steamchest with flashing taking place in the separator and no boiling taking place within the tubes, fouling on hot tube walls is reduced.

Forced Circulation Evaporators may be equipped with either horizontal or vertical steam chests. The circulating pump withdraws liquid from the lower part of the vapor-liquid separator and circulates it through the tubes at a high velocity.  Boiling is suppressed in the tubes either by liquid head or an orifice plate. The heated liquid is discharged into the separator where the vapor flashes off due to the temperature difference and is removed through the top outlet. The liquid is discharged at a maintained liquid level.

Additional Information:

• Production Capacity: As Per Requirement
• Delivery Time: 8-10 Weeks

• Packaging Details: Standard or As Per Requirement
