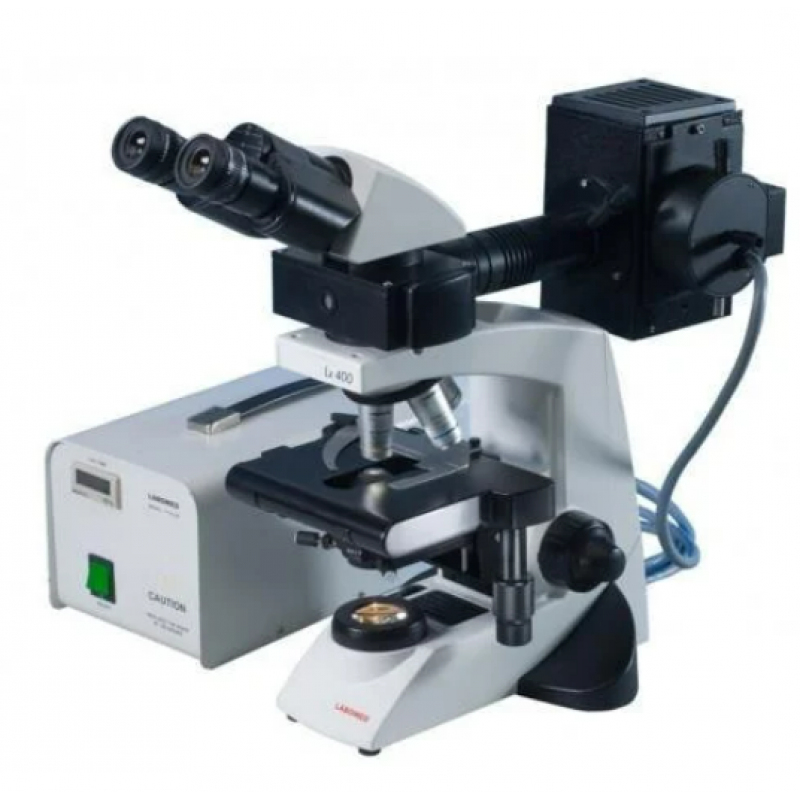

Fluorescence Microscope

Brand	Lamomed
Application	Laboratory
Nose Piece	2

We have reached the pinnacle of success and earned a reputed name by providing the high-quality range of Fluorescence Microscope.

General Specifications:

• Epi-illumination through with LED
• Incident EPI illumination through FITC filter for malaria test by capillary method & for tuberculosis detection.
• FLR excitation block pushed for use as bright-field microscopy

Technical Specifications:

• Vacuum coated Prism for better transmission and anti fungus character.
• Eyepieces: Wide Field focusable paired eyepiece WF10x/20mm, anti-fungus coating, graduated ring for a setting of individual eye diopter.
• Special Eye-guard: A pair of well-fitting soft rubber pieces to protect the eyes and block stray light to offer perfect fluorescence observation.
• Nosepiece: Reverse angle quadruple nosepiece (Ball bearing type) with click stops and rubber grip
• Par-centered & parfocal on CNC machines.
• Objectives: RP series DIN infinity corrected plan achromatic objectives 10x, 20x, 40x (spring loaded), 100x Oil (spring loaded) anti-fungus coating.
• Specially corrected for fluorescence.
• Optional: 50x Oil Objective for malaria test by capillary method.
• Illumination: Incident & Transmitted LED illumination with variable illumination control.
• Rechargeable lithium Ion battery provides long hours of battery backup in case of electricity failure.
• Essential: Rechargeable battery pack (6 V DC)of minimum two hours with charger working with 220– 240 V AC,50 Hz supply for online and offline power.
• Electrical: Input 180v-240v AC with removable imported cord.
