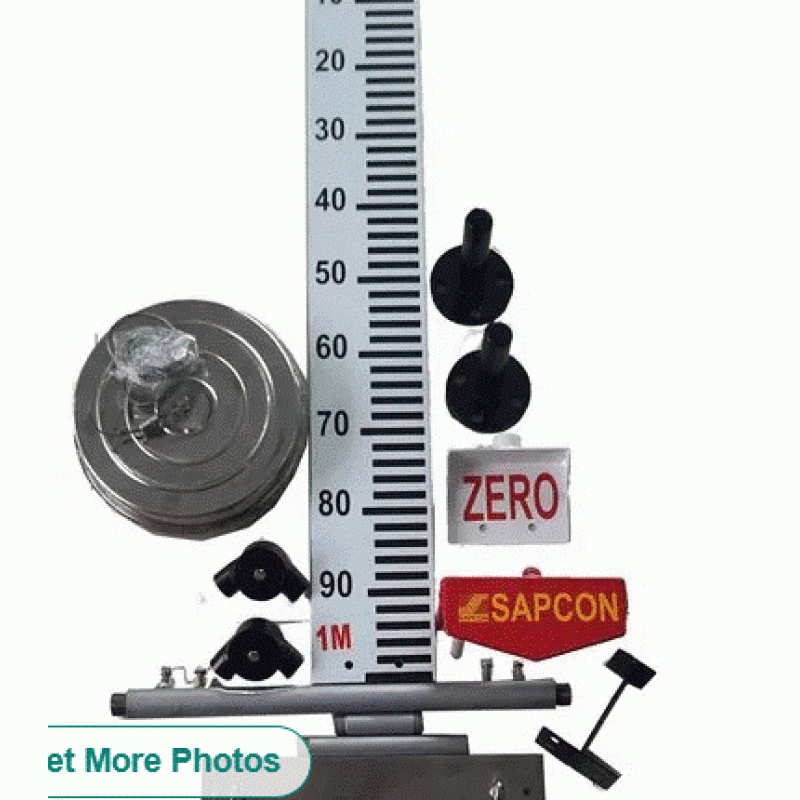

Float And Board Level Indicator
Product Details:

Type	Magnetic Level Gauge
Tank Height	10 m
Fluid Type	Water
Float Size	280 mm
Measuring Range	Upto 15 mtr
Construction Type	Guided
Usage Media	Water

The working principle of Float & Board is based on the buoyancy principle and is linked as per balanced counter weight system.float inside the tank and counter weight (scale pointer) connected by the rope wire which is moving freely on the pulley assembly. When the storage tank is empty position, the float located inside the bottom of the scale pointer located at zero level on external scale. If the liquid level rise in the tank, the float move upper side and scale pointer move downward on the graduated scale to show liquid level inside the storage tank. If liquid level turbulance inside the tank use float guide rope wire assembly with anchor for stability of float.
