Flapper Nozzle Assembly

Process Control Trainers

SPECIFICATION

Features
Compact Ergonomic Design.
User Friendly, Self Explanatory Systems.
Robust Construction.
MS powder coated frame.
Training Manuals for Operation Ease.
Inbuilt Safety Measures to avoid improper usage

Experiments
To plot the characteristics of Displacement (micron) Vs Pressure (Psi).
System Components

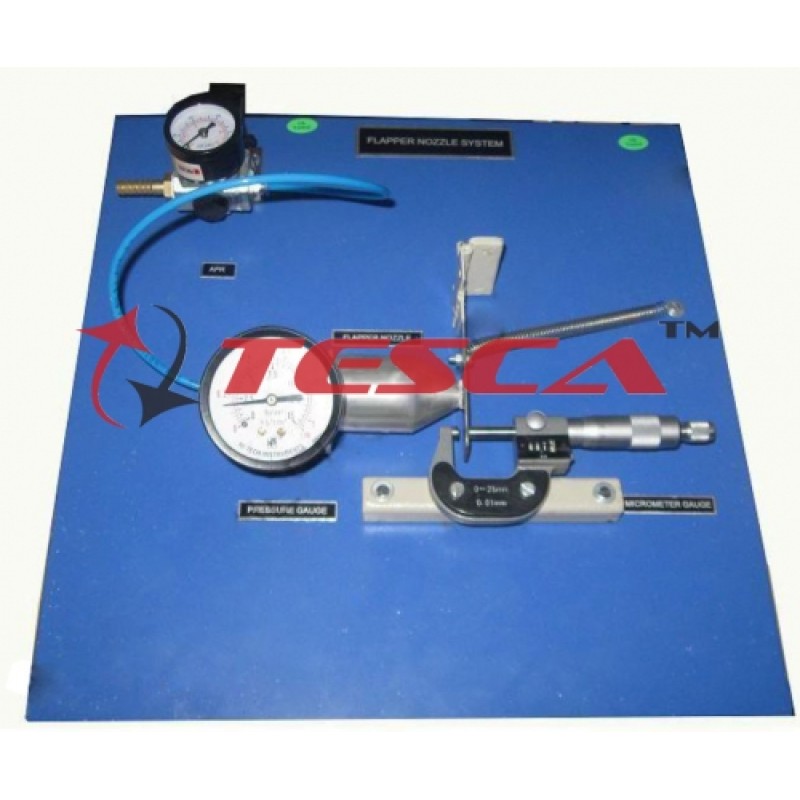

Flapper Assembly.
Nozzle Assembly.
Micrometer for application of linear displacement to Flapper.
Air Pressure Regulator.
Pressure gauge for backpressure measurement.

Services Required
Clean, Dry Compressed Air Supply at 2.1 Kg/cm².
