First Order And Second Order System

The set up is designed to study of transient response of first-order and second-order systems.

First-order system:

• Step response of thermometer
• Step response of thermo well
• Sinusoidal response of thermo well

Second-order system:

• Step response of mercury manometer
• Step response of manometer

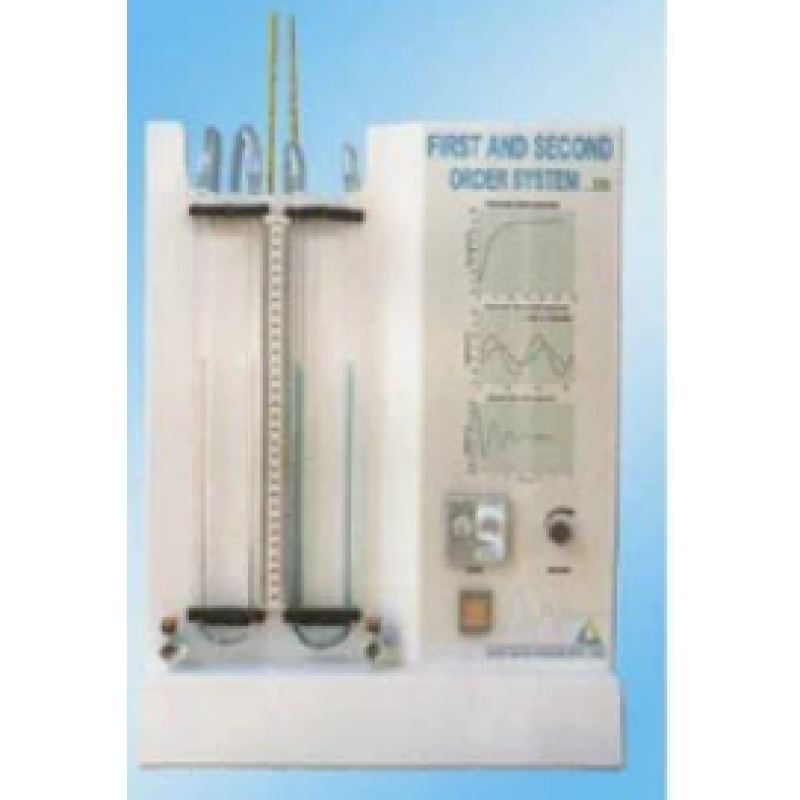

Setup consists of ‘U’ tube manometer, heating bath, thermometer, thermo well, beeper for recording observations and timer for heater on-off operation. The components are mounted on base plate. The set up is tabletop mountable.

Features:

• Sinusoidal water bath
• Beeper for recording observations
• MS Excel sample calculation
• Compact set up

Range of experiments:

• Study of step response of thermometer
• Study of step response of thermo well
• Study of sinusoidal response of thermo well
• Study of step response of mercury manometer
• Study of step response of water manometer

Utilities required:

Electric supply:

• Provide 230 /- 10 VAC, 50 Hz, single phase electric supply with proper earthing.
• (Neutral – Earth voltage less than 5 VAC.)
• 5A, three pin socket for mains

Water supply:

• Socket Provide clean and soft water @100LPH with drain arrangement

Support table:

Size: 800Wx800Dx750H in mm

Specifications

• Product First-order and second-order system
• Product code MI 320 B
• Thermometer Range -10 – 0 – 1000C
• Thermometer with thermowell Range -10 – 0 – 1000C
• ‘U’ tube manometer Tube ID 1.6mm
• ‘U’ tube manometer Tube ID 3.75mm
• Heating bath Size 1.25BSP, 315mmL, SS304
• Heater Size 1.25BSP, 2Coil, 3Kw.
• Timer Model 55C – T8, cyclic.
• Beeper Time setting Range 2-10 sec
• Overall dimensions 370Wx225Dx485H mm
