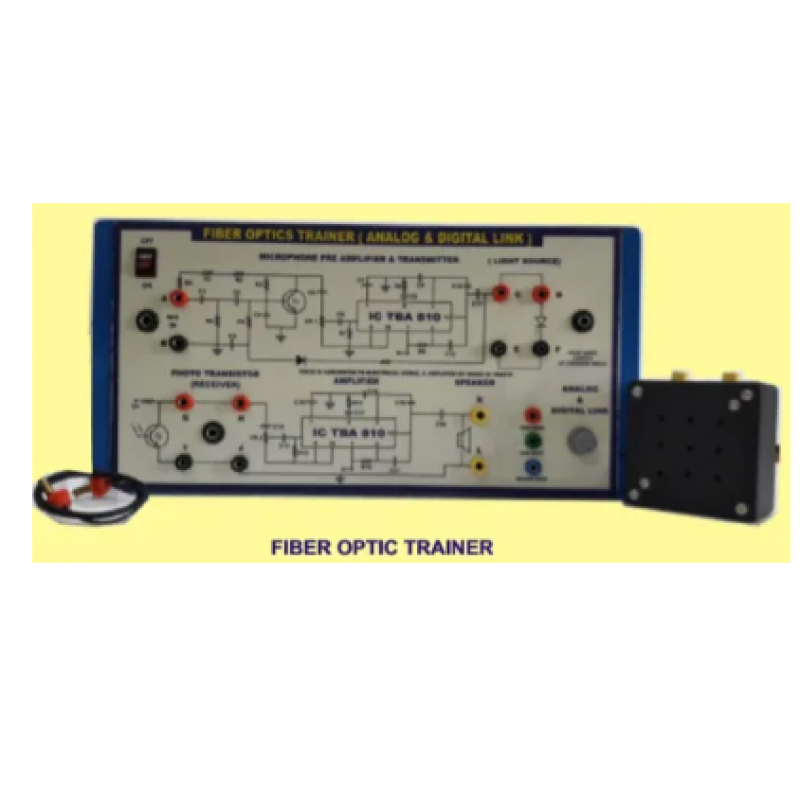

Fiber Optic Trainer
Product Details:
Objective :a) To study the transmission of analog & digital signal through fiber optic cable & also caculate propogation loss,bending loss & voice transmission.
b) Recovery of Modulating Signal from Receiver Circuit.
Technical Specification :
* In built IC based DC Regulated Power Supply ±9V,250mA
* On board optical output through Light Emitting Diode.
* On board Photo Detector.
* Inbuilt Sine and Square wave generator for analog and digital experiment.
* Voice transmission through Microphone.
* Demodulation of voice signal through External speaker.
* 1 meter fiber Cable provided with instrument for signal transmission.
* Block diagram printed on front panel & connections brought out at sockets.
