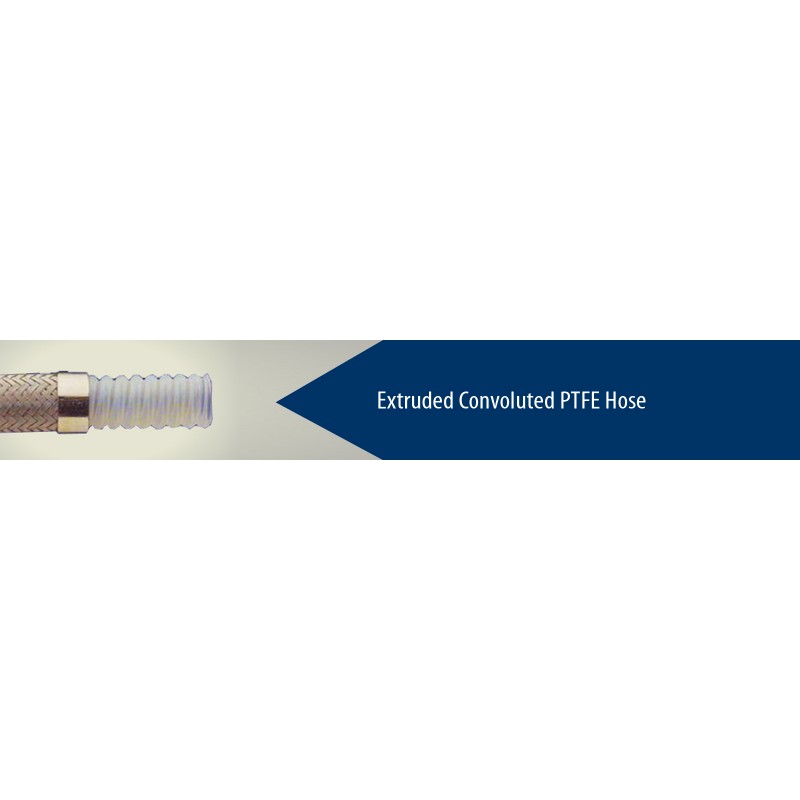

Extruded Convoluted PTFE Hose
Product Details:
Extruded Convoluted PTFE Hose with high Tensile AISI 304 Stainless Steel Braided Hose for Industrial use.
Application: Hydromac Hydraulics convoluted hose and assemblies are highly flexible and can be used at temperatures ranging from -70° C to 260° C. Suitable for most known chemicals, acids, oils, corrosives, alkalis, gases, steam, pharmaceutical and foodstuffs industries.
Fittings: Male, female, flanged, Triclover and PTFE flared / encapsulated fittings available in all the material.

EXTRUDED CONVOLUTED PTFE HOSE WITH SS BRAID
ID MM	OD MM	Working Pressure BAR	BURST Pressure BAR	Minimum Bend Radius MM
7	12.5	130	400	20
10	15	110	450	25
13	18.5	100	300	30
16	22	85	260	50
20	25	70	210	70
25	33	45	140	90
32	40	40	120	120
38	46	32	100	150
50	60	26	80	180
63	81	18	60	250
76	90	18	60	300
100	121	14	45	400
150	190	8	25	500
