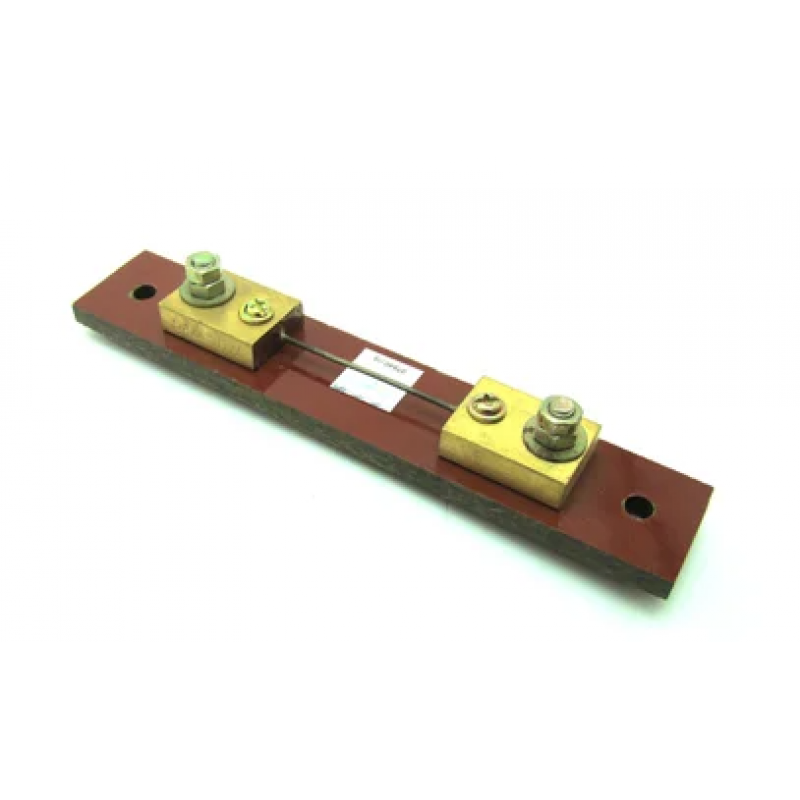

External Shunt DC 2A 75mV with Base Plate
| Material | Brass and mangnin |
| Accuracy | 1.0% or 0.5% |
| Brand | YOKINS |
| Size | As per IS1248 |
| Model Name/Number | as per IS1248 |
| Current | 2A |
The Yokins shunts are available from 1A up to 15000A with an accuracy of 0.5% & 1% as per ISI248. Standard voltage drop is 50mV, 60mV & 75mV. Intermediate current ratings, other voltage outputs, better accuracy and purpose built shunts can be supplied.
Application
Shunts provide an accurate DC milli volt signal to drive ammeter indicators, overload protection and control devices, especially for higher amperage. It supplies Voltage drop proportional to the DC current which is measured and indicated by a moving-coil milli voltmeter with the dial calibrated in Amps.
Operating principle
A current passing through the Shunt produces a proportional voltage drop. A moving coil instrument connected to shunt measures the voltage drop across the shunt terminals. Shunts are calibrated in such a way that they produce an accurately defined voltage drop (50mV, 60mV, 75mV and 150mV).
Additional Information:
- Production Capacity: 20000 pc per month
External Shunt DC 2A 75mV with Base Plate
- Views: 19
- Vendor: Yokins Instruments Private Limited
- Vendor Type: Manufacturer, Distributor, Supplier
- Product Code: YIP0000031
- Availability: In Stock
- ₹0
