Environmental Stress Cracking Resistance Tester

PRODUCT DETAILS:

E.S.C.R is used for determining the susceptibility of ethylene plastics, to environmental stress cracking when subject to certain conditions.

APPLICATION
Environmental stress cracking is a property that is highly dependent upon the nature and level of stress applied and on the thermal history of specimen. This taste is normally employed for routine inspection purpose.

USP

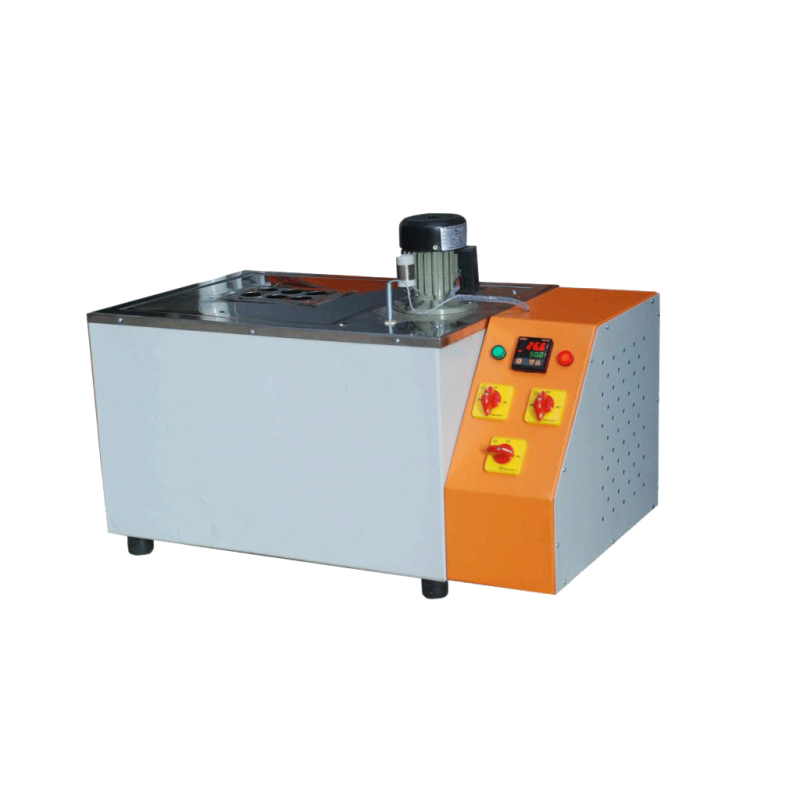

HEXA PLAST ESCR apparatus is consisting of S.S. bath insulated with puff to maintain the required temperature with accuracy of 0.1º C. Temperature is controlled by microprocessor based PID controller. ESCR is having a facility of digital time totalizer to keep watch on process line.

SPECIFICAITON

Model No.	HP – ESCR – I
Temperature Range	0-400ºC
Time totalizer range	999.9 hrs.
Water Circulation	Through induction motor with stirrer
Testing Capacity	6 tests at a time
Heating Load	1.5 to 3 kW
Body	Inner S.S and Outer M.S with powder coating
Power Supply	1 Phase, 230 V, AC, 50 Hz.
