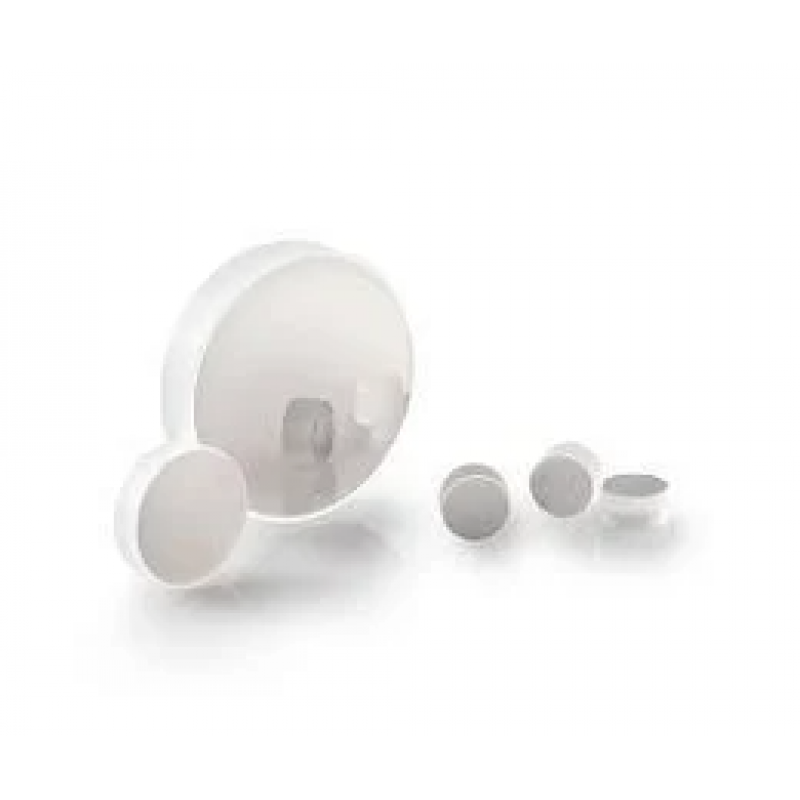

Enhanced Aluminum Mirror
Product Details:
Aluminum is the preferable material for UV-Vis applications. It has better reflectance than any other metal in UV. Aluminum mirrors are available as protected aluminium and enhanced-aluminum.
Mechanical Specifications:
substrate material : Glass
Physical Specifications:
coating technology : Physical vapor deposition
coating type : Metallic aluminum with protective overcoat
wavelength range : UV-VIS-NIR
coating performance : R ≥92  % in 550-650 nm
angle of incidence : 0- 45 degree
clear apertures : > 90 % of the specified aperture
adhesion and durability :As per MIL-C-675C
 As a front surface reflection mirror
45° front surface mirrors
Redirecting first surface mirrors
Sensor Technology
Barcode Scanner Mirrors
Flatbed Scanners
Laser Projection Scanners
Laser Applications
Infrared Mirror
Episcopes, Copiers, Projectors, Fax Machines
Cameras and Optical Instruments
Technical Mirror
Economical Gold Mirror replacement (SEA-NIR)
