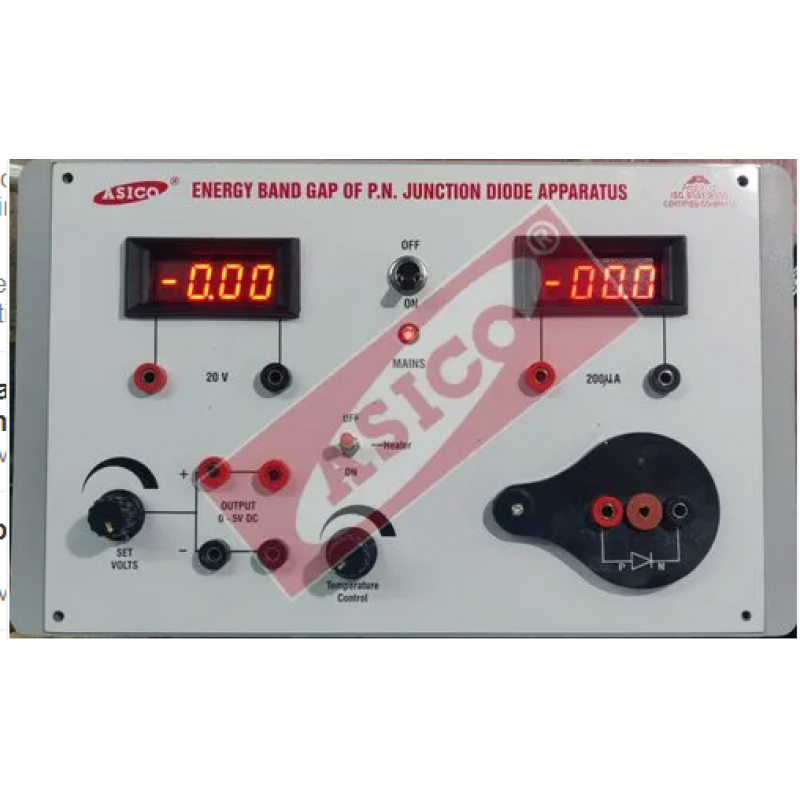

Energy Band Gap Of PN Junction Diode (AE218)
Power | AC Mains |
Usage/Application | Laboratory |
Model Name/Number | AE 218 |
Type | Digital |
Material | plastic |
Color | gray |
Display Type | Digital |
Objective : To plot Reverse saturation current Vs Temperature in reverse biased PN Junction Diode.
Features : Instrument comprises of DC Regulated Power Supply 0-5VDC/150mA, Two digital meter for Current & Voltage measurement, one PN Junction Diode (Ge type) is kept in Oven, connections of supplies, Meter & Diode brought out at 4 mm Sockets. Also provided with Oven with temperature on / off control switch.
