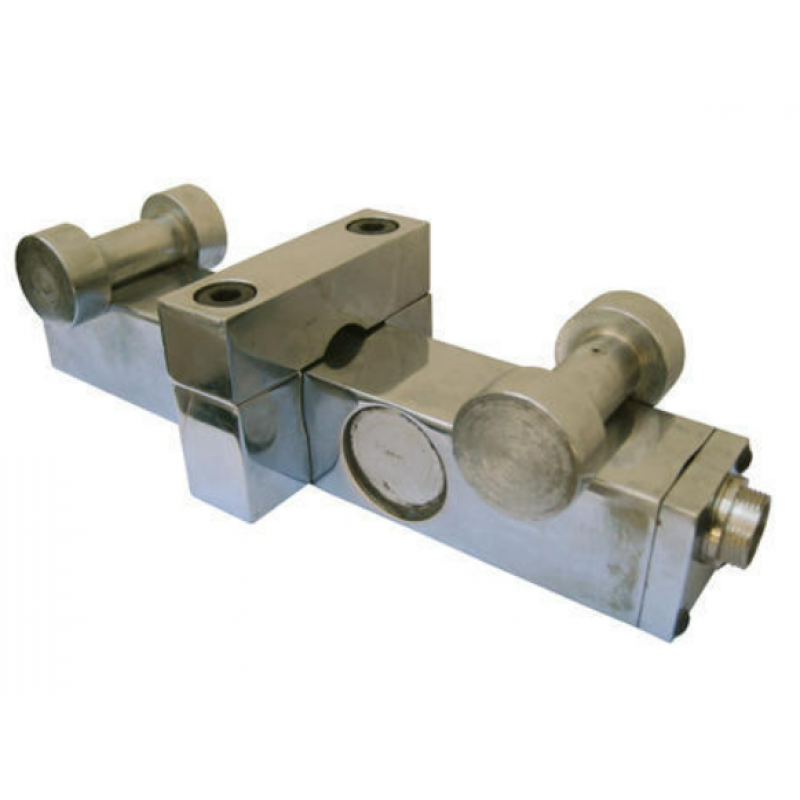

Elevator Load Cells
Product Details:
| Brand | Goldtech |
| IP Rating | IP67 |
| Safe Load | 200 % |
| Operating Temperature Range | -30 ~+70 Deg C |
| Material | Alloy steel |
| Rated Load | 1,2,3,4 Ton |
To meet the diversified requirements of our prestigious clients, we are engaged in offering Elevator Load Cells. Provided load cells are available in a wide variety of specifications as per the exact requirements of clients. These are manufactured as per international standards using the best quality raw material and sophisticated technology under the guidance of our expert team. In addition to this, clients can avail these load cells from us in customized options and at market leading prices.
Features:
Specifications:
| Rated Load | t | 1,2,3,4 |
| Sensitivity | mV/V | 2.0±0.002 |
| Combined Error | %F.S. | ±0.1 |
| Creep (30 min) | %F.S | ±0.03 |
| Zero Balance | %F.S | ±1 |
| TCO | %F.S./10 | ±0.03 |
| TCSPAN | %F.S./10 | ±0.03 |
| Input Impedance | Ω | 410±10 O |
| Output Impedance | Ω | 350 ±5O |
| Insulation Resistance | Ω | ≥5000M |
| Operating Temp. Range | | -30 ~+70 |
| Safe Load | %F.S | 200% |
| Utmost Load | %F.S | 300% |
| Recommend Excitation | VDC | 10~12 |
| Maximum Excitation | VDC | 15 |
| Protection class | IP67 | |
| Cable | Dim:φ6/Length : 5 M |
