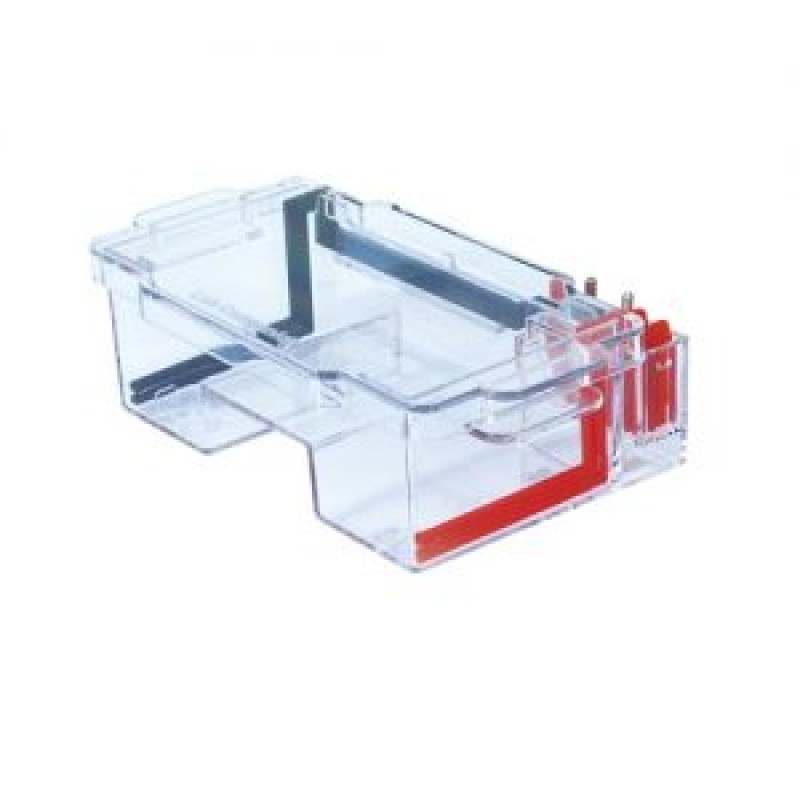

Electrophoresis Systems

Product Features :

Three systems for different sized gels, satisfying your need for a more detailed DNA/RNA analysis

• The electrophoresis system is a molded transparent polycarbonate product with superior shock-resistance, transparent, and durability to acrylic adhesives
• Detachable electrode assembly allows for easy cleaning and maintenance
• Each unit comes with one banana cable. Black & red cables are coupled together and can be inserted or extracted at the same time
• UV-transparent gel trays allow for viewing bands on the UV-transilluminator without removing gel tray
• Diverse-sized molded gel trays and casters for leak-free casting
• EP-5 : 82x81mm (1ea) and 82x58mm (2ea) gel trays with one comb position
• EP-10: 181x103mm (2ea) gel trays with max. four comb positions
• EP-18: 181x206mm (1ea) gel tray with max. six comb positions
• Double-sided combs are provided depending on each model
• EP-5 : 1mm thick 27-and 40-well comb (1ea)
• EP-10, 18 : 1.5mm thick 20-and 31-well comb (2ea),
• 1mm thick 20-and 31-well comb (2ea),
• 1.5mm thick 16-and 20-well comb (2ea),
• 1mm thick 16-and 20-well comb (2ea),
• 1.5mm thick 25-and 34-well comb (2ea),
• 1mm thick 25-and 34-well comb (2ea)
• 31-well comb and 16-well comb for matching multichannel pipettes suitable for large amounts of sample screening- up to 186 samples at once using 6 combs in EP-18 gel tray
• Comb-setting grooves in gel trays or caster prevents sliding of combs
• Adjustable gel length
• Flat, uniformly thick gels are formed by built in level maker on the gel tray and level bubble on the gel castor
