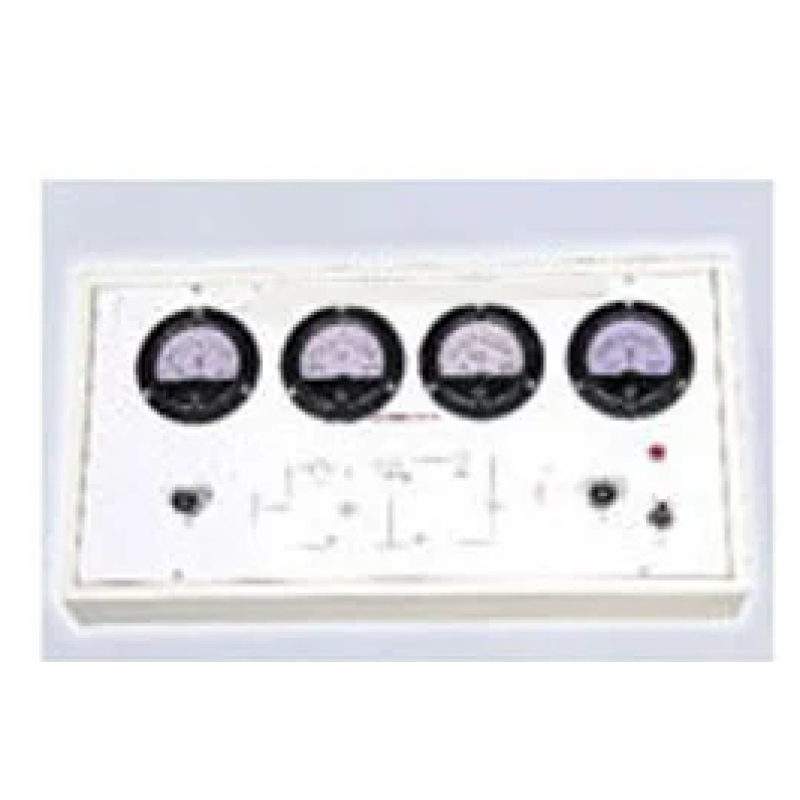

Transistor Curve Apparatus
Click Image for Gallery
Transistor Curve Apparatus
Transistor Curve Apparatus
Product Details:
The instrument is designed to draw input as well as output characteristic curve
of a P.N.P. Transistor. It has two regulated power supplies of its own & four
meters. Complete circuit diagram is provided on the front panel. Complete
with instruction manual.




Specification
Input230 volt AC
Output0-9 volts at 50 mA
Stability± .05%

(a) COMMON EMITTER
(b) COMMON BASE
(c) COMMON COLLECTOR
