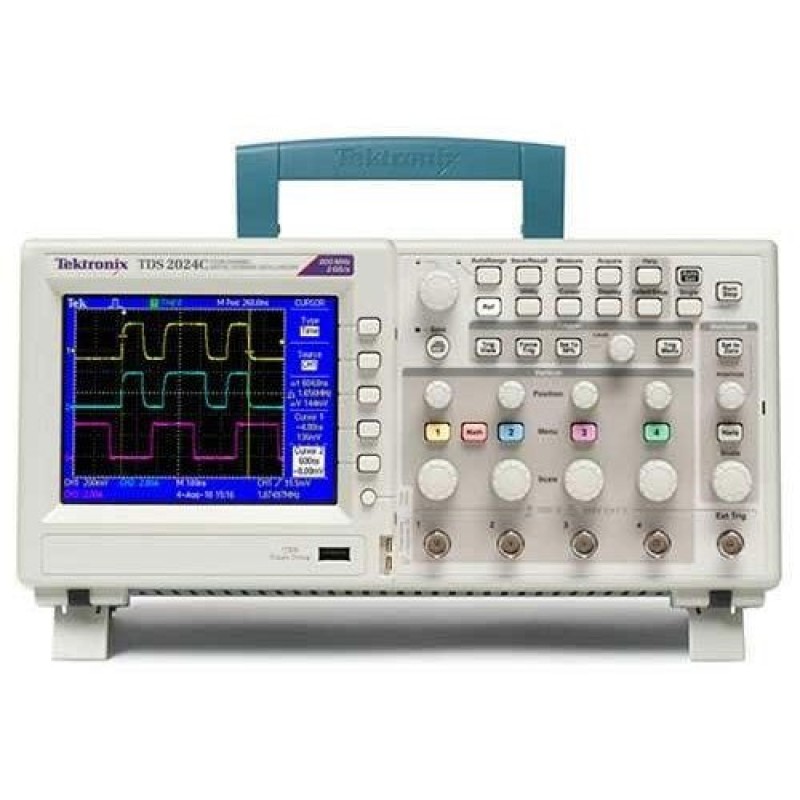

Tektronix Digital Storage Oscilloscope
Product Details :
Model Name/Number | TDS2024C |
Brand | Tektronix |
Bandwidth | 200 MHz |
Record Length | 2.5k points at all time bases on all models |
Channels | 4 |
Vertical Resolution | 8 bits |
Display | TFT |
External Trigger Input | Included on all models |
Vertical Sensitivity | 2 mV to 5 V/div on all models with calibrated fine adjustment |
Vertical Zoom | Vertically expand or compress a live or stopped waveform |
Other Details:
The TDS2000C Oscilloscope Series provides you with affordable performance in a compact design. Featuring Tektronix proprietary technology, the digital real-time sampling architecture means you can accurately see small signal details. Every model is packed with standard features, including USB connectivity, 16 automated measurements, limit testing, built-in help menu and a Lifetime Warranty**. Get more done in less time with the TDS2000C Oscilloscope Series.
Features: | Benefits: |
Digital real-time sampling | Accurately capture signals with at least 10X over-sampling on all channels, all the time with Tektronix proprietary sampling technology. |
Built-in analysis tools | Simplify analysis of your device with 16 automated measurements, FFT analysis, waveform math and cursors. |
Waveform limit testing | Eliminate mistakes with the pass/fail summary table that clearly shows how many waveforms are within the limits of your specified template. |
Help menu | Get the help you need – when and where you need it – with the built-in, context-sensitive help system. |
Dedicated front-panel controls | Spend less time learning and more time on your task with easy-to-use front-panel Affordable performance, compact design. 10x oversampling, USB connectivity, 16 automated measurements. |
Front-panel USB host port | Quickly store and transfer your waveforms and settings. |
USB PC connectivity | Easily connect to a personal computer with the rear-panel USB device port. Use NI LabVIEW SignalExpress™ software to control your scope, log data, and to simply transfer and document your results. |
Bright color display | See your waveform and measurement results at a distance, at an angle or under dim lighting with the bright, active color display. |
Lifetime Warranty** | Reduce your cost of ownership with the standard, Lifetime Warranty. |
