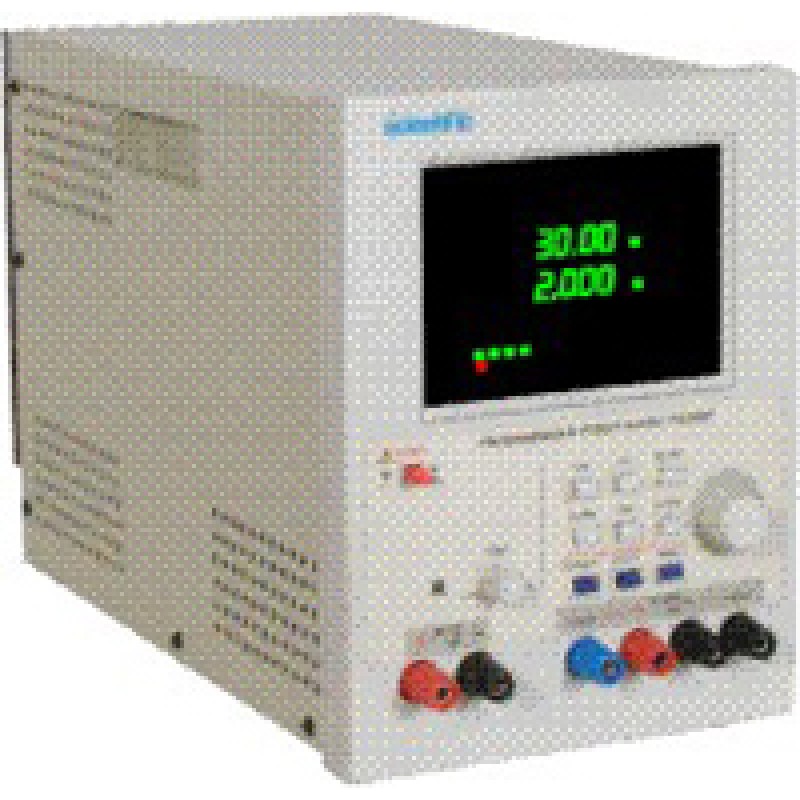

PSD9000 SERIES PROGRAMMABLE POWER SUPPLY

Model : PSD9000

Product Details :

• The new unbeatable series of Programable DC Power Supplies, PSD900 is designed on advance techniques , delivering fully programmable and remotely controlled power supply. It delivers DC 0 to 30V at 2 A , with an auxiliary 5V 2 A. The auxiliary 5V power supply is adjustable from 1.5V to 5.5V , to cater modern digital circuits from LTTL to TTL levels. The built-in RS232C interface with software (standard) adds the capability to generate a time varying DC output. This is widely used in component, critical circuit testing and validation. In addition to these PSD9002, PSD9003 & PSD9004 is allows you to enter direct numeric values for setting voltage, current limits , fuse current with ease and quick response. PSD9004 is equipped with LCD readout , which gives quick display of the various setting.
• The ergonomically designed front panels of PSD9000 series power supplies, gives easy and quick operation. A programmable electronic fuse setting enables the user better control over the circuit under test. All these features of these programmable power supplies makes an ideally suited for innumerable applications in laboratory, servicing , industries and educational use where accurate and reliable result is a necessity.

"Order -NABL accredited certificate traceable to National Standards."

Features :

• Programmable DC 0 to 30V- 2A , Auxiliary 5V- 2A (PSD9001 & PSD9002)
• Programmable Dual DC 0 to 30V - 2A (PSD9003 & PSD9004)
• Electronic Fuse for output
• Last setup save
• Constant Voltage & Constant Current modes
• Adjustable Current Limiter
• Output ON/ OFF control
• Serial Interface RS232 standard, USB Interface (optional)
