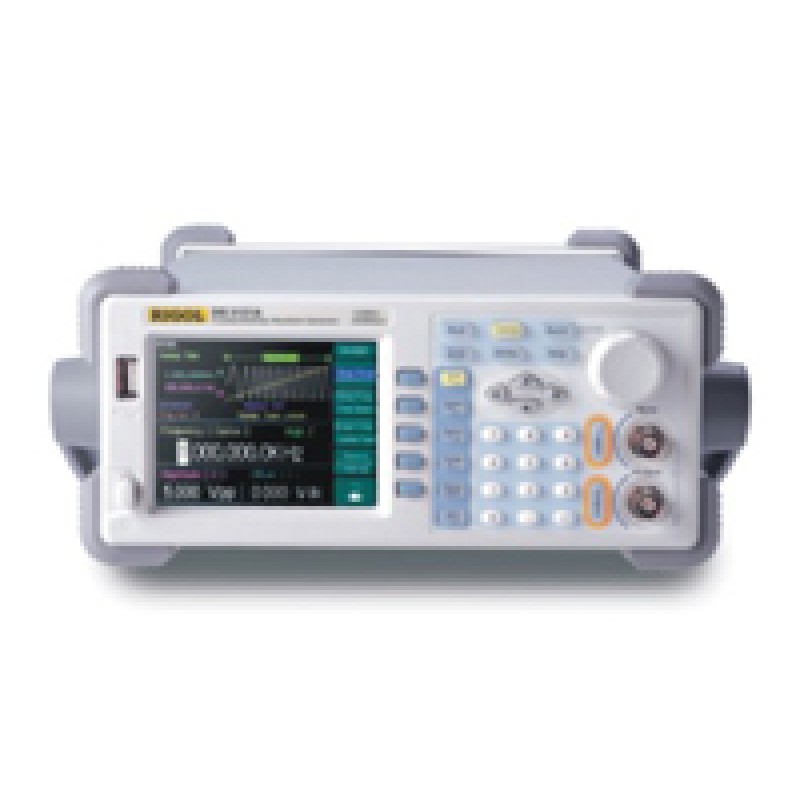

60/100/120 MHZ FUNCTION GENERATORS

Models : DG-3000-SERIES, DG-3061A, DG-3101A , DG-3121A

Product Details :

The DG3000 series Function Generator offers standard and arbitrary signals from 1 uHz to 15MHz and 20 MHz. These function generators find applications in simulation of sensors and environment signals. Application includes circuit functional tests, serial bus test, IC , component tests. etc. These function generators are equipped with interfaces for connecting as signal generator component to the Automatic Test Equipment setup.

Features :

• DDS Technology: Provides for a superior signal with low distortion and noise
• 300 MSa/s of sample rate,
• 14 bits of vertical resolution,1M points of memory depth
• 10 standard waveforms: Sine, Square, Ramp, Pulse, Noise, Exponential Rise, Exponential Fall, Sin(x)/x, Cardiac, DC
• Arbitrary Waveform generation as defined by the user
• Versatile modulation and variety of waveforms: AM, FM, PM, FSK, PWM, Sweep, Burst
• Optional Digital Logic Module - Create true mixed signals with 1 analog and up to 16 digital channels of stimulus
• Waveforms output, Digital synchronous signals output, External modulation source, External clock reference (10 MHz), External trigger and internal clock Output (10 MHz)
• Remote access and control signal generators through 10/100M LAN interface
