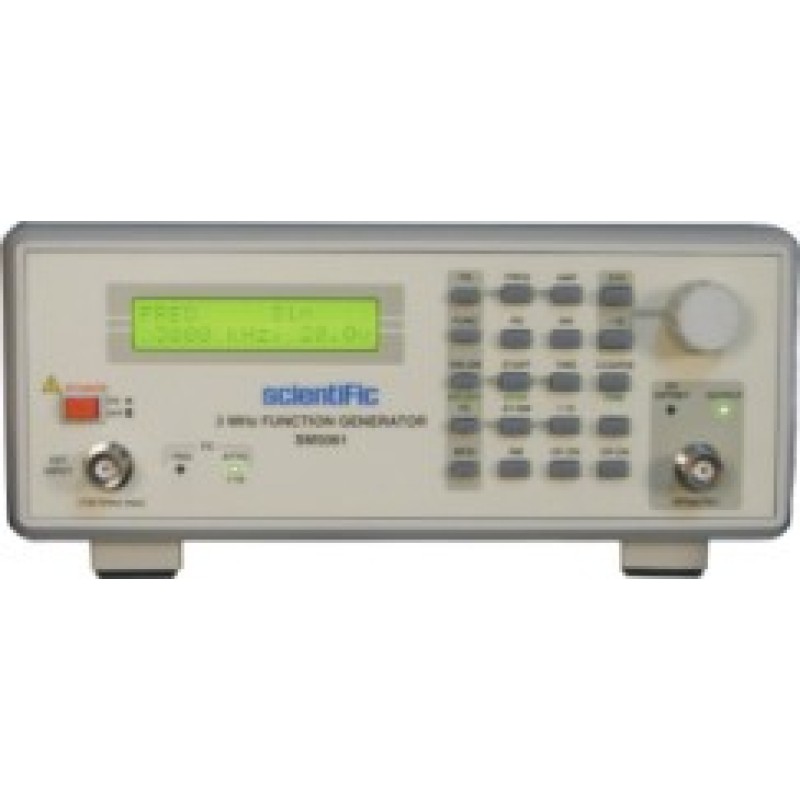

3 MHZ MULTIFUNCTION GENERATOR COUNTER

Model : SM-5061

Product details :

            The new SM5061 3 MHz Function Generator , state of the art designed on latest emvedded & SMD technology. Precise settings of signal frequency , very low drift , amplitude , duty cycle made it possible to have full control over test signal input to your testing needs. High stability 0.1 % / hr, ensures no need to check and recheck the deviation in signal fed to your system.

Internal sweep function can be clubbed to any of the waveform shape, has full control over start, stop frequencies and sweep duration.

Features :

• Three functions in one instruments
• Function Generator
• Sweep Generator
• Frequency Counter
• Waveforms : Sine, Square, Triangle,
• Ramp, Pulse, adjustable DC
• DC- Offset Adjustment
• External Modulation AM(standard & Balanced) FM , PWM, PAM
• Internal Sweep
• Distortion Factor < 0.5%
• Square Wave risetime typ. 40ns
• All the parameters can be remotely controlled via RS232 interface
