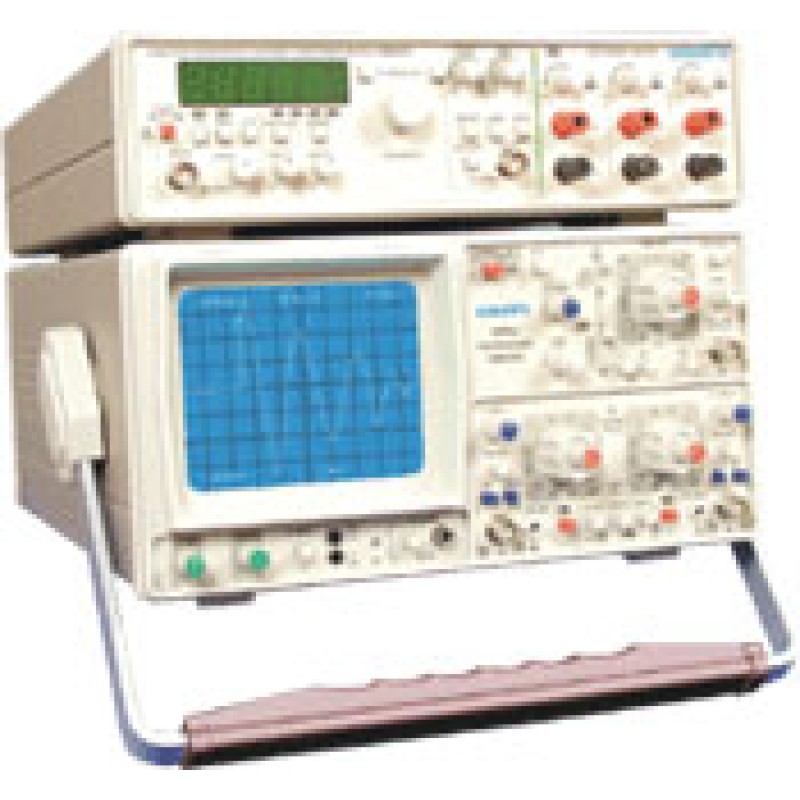

3 MHZ FUNCTION GENERATOR- COUNTER WITH POWER SUPPLY

Model : SM-5076

Product Details :

        The new SM-5076 includes Function generator, Frequency counter and DC power supply. The function generator features high signal purity and constant amplitude flatness over entire range. Output waveforms are Sine, Square and Triangular. An auto ranging frequency counter is included to measure the frequency of unknown signal. The measured frequency is displayed on 5 digit LED display. Frequency counter features 50 mVrms sensitivity with adjustable trigger level to ensure stable measurement. A dual DC power supply of 2 x 15 V and 5 V, 1 A makes it an ideal test bench instrument for your lab applications.

Features :

• 0.3 Hz to 3 MHz Function Generator
• 15 MHz Frequency Counter
• Waveforms : Sine, Square, Triangle, DC
• DC- Offset Adjustment
• Internal Sweep and External FM Modulation
• Distortion Factor < 0.5%
• Square Wave risetime typ. 70ns
• 2 x 15 V/1 A, 5 V/1 A DC Power supply
