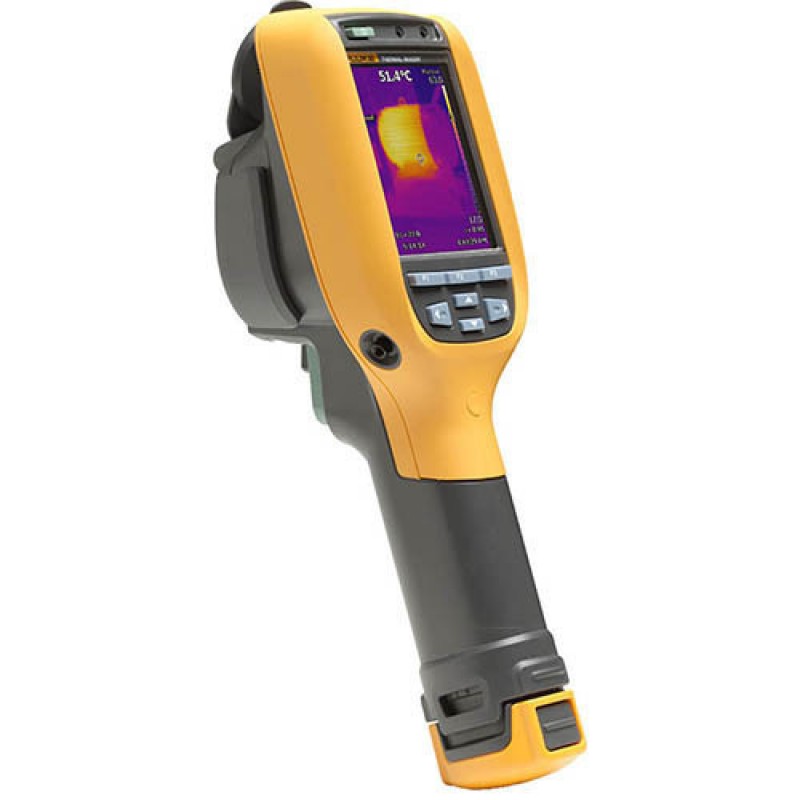

Thermal Imaging camera
Product Details:
CNX Wireless Enabled | Yes |
Standard Palettes | Blue-Red,Ironbow,Grayscale,Amber |
Level And Span Control | Manual and auto |
Minimum Span in Auto Mode | 5 Deg C |
Weight | 0.726 kg (1.6 lb) |
Size | 28.4 x 8.6 x 13.5 cm (11.2 x 3.4 x 5.3 in) |
Display Type | LCD 3.5 inch diagonal (portrait format) |
The lightest, most rugged and easiest-to-use professional thermal imager has now arrived. Perform infrared inspections faster and more efficiently with the Ti100 Thermal Imager.
Features:
- 1.3 million pixels CCD image
- Various temperature Measurement functions
- IP 54
- JPEG Storage with Voice Annotation
- High cost-effective
- Rugged, lightweight, point-and–shoot focus-free thermal camera
- Laser pointer to assist in showing where problems exist
- Boost productivity and communication
- Communicate measurements with ShareLive™ video call - get immediate answers or work approvals without leaving the inspection site
- Spend less time finding problems and more time solving them with the innovative, rugged and easy to use Ti100 General Use Thermal Camera.
Specifications:
IR resolution (FPA size) | 160 x 120 FPA Uncooled Microbolometer |
Spectral band | 7.5 µm to 14 µm (long wave) |
Capture or refresh rate | 9 Hz |
NETD (Thermal sensitivity) | ≤0.10 °C at 30 °C target temp (100 mK) |
FOV (Field of view) | 22.5 °H x 31 °V |
IFOV (Spatial resolution) | 3.39 mRad |
Temperature measurement range (not calibrated below -10 °C) | -20 °C to + 250 °C |
Temperature measurement accuracy | ± 2 °C or 2 % (at 25 °C nominal, whichever is greater) |
Focus mechanism | Focus-free 1.2 m (4 ft) and beyond |
IR Fusion ® technology | No, full IR only |
Standard palettes | Blue-Red, Ironbow, Grayscale, Amber |
User definable spot markers | in SmartView® only |
Level and span control | Manual and auto |
Minimum span in auto mode | 5 °C |
Minimum span in manual mode | 2.5 °C |
Minimum IR focus distance | 1.2 m (4 ft) |
