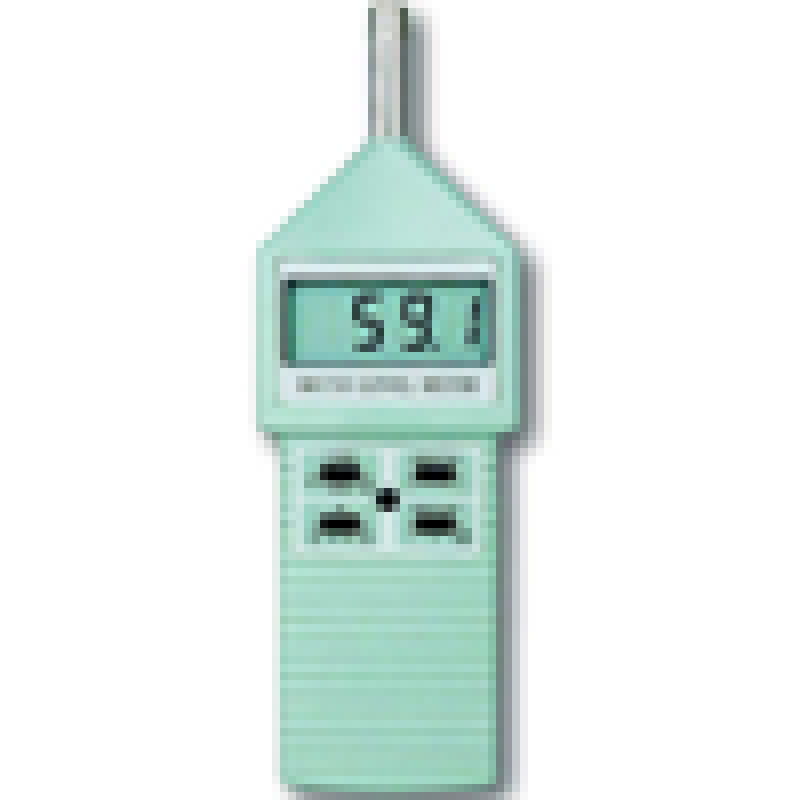

Sound Level Meter
Sound Level Meter
Product Details:

This is an industrial grade instrument essential for measuring noise and sound pressure levels in a standardized way. Our real time sound level meter or tester is a handheld device and covers all possible requirements from level checks to in-depth analysis. This sound meter meets all industry standards and features all essentials needed to perform high precision sound measurement in environmental, occupational and automotive industrial application areas such as horn noise sound level and sound frequency. With light weight design, large LCD display, durable housing and clear read-out even in bright ambient light condition etc. this instrument is the most suitable sound pressure level meter (SPL Meter) available on the market today.
Features
Durable and light weight design
A & C weighting networks meet standards
Time weighting (FAST & SLOW) dynamic characteristic modes
Build in adj. VR is available for easy calibration
Condenser microphone for high accuracy & long-term stability
Warning indicator for over and under load
Clear read-out even in bright ambient light condition
Can be used to measure horn sound level

Specifications
Model
PX-202
Range
3 ranges, 30 to 130 dB, input signal only
Resolution
0.1 dB
Frequency
31.5 Hz to 8,000 Hz
Microphone
Electric condenser microphone
Size of microphone
1/2 inch standard size


Range selector
30 to 80 dB
50 to 100 dB
80 to 130 dB
50 dB on each step


Time weighting
Fast - t= 200 ms
Slow - t = 500 ms


Calibration
Build in external calibration VR


Output Signal
AC output - AC 0.5 Vrms
DC output - DC 0.3 to 1.3 VDC, 10 mV per dB


Power Supply
006P DC 9V battery
