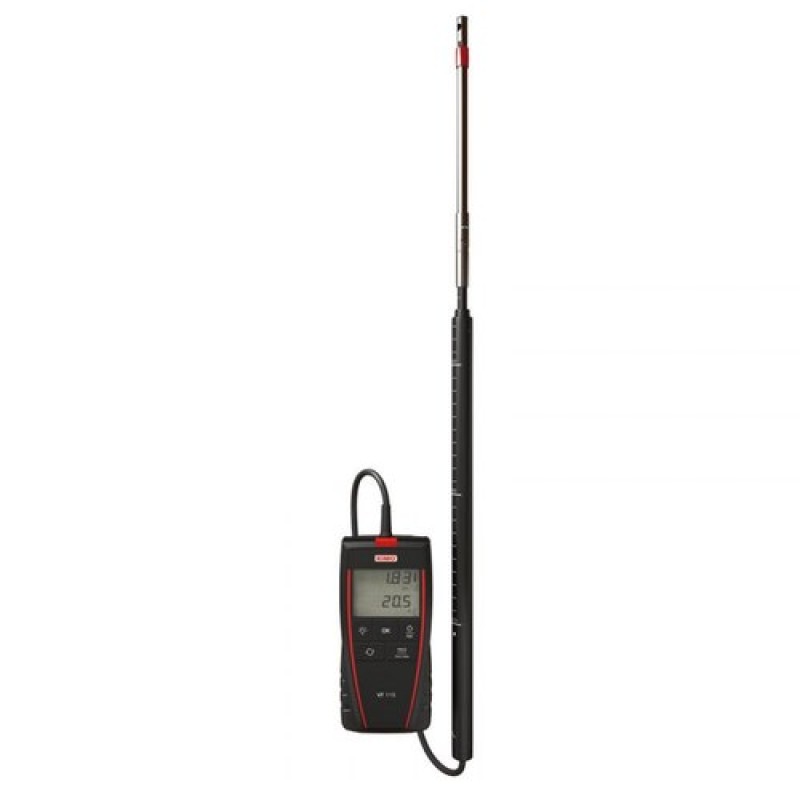

Sauermann VT115 Hot Wire Anemometer

Product Details:

Product Specification

Usage/Application	Air Velocity
Display Type	LCD
Model Name/Number	VT115
Brand	Sauermann
Velocity Accuracy	From 0.15 to 3m/s: +-3% of reading +-0.05m/s
Airflow Accuracy	+-3% of reading +-0.03 x surface (cm2)
Temp Accuracy	+-0.3% of reading +- 0.25 Degree Celsius
Velocity Measuring Range	From 0.15 to 30m/s
Air Flow Range	From 0 to 99 999m3/h
Temp Measuring Range	From -20 to +80 Degree Celsius
Air Flow Resolution	1m3/h
Velocity Resolution	0.01m/s
Temperature Resolution	0.1 Degree Celsius
Type of Probe	Telescopic hotwire probe bent at 90 Degree
Cable	Straight, 2m length
Housing	ABS, protection IP54
Key Pad	5 keys
European directives	Directives EMC 2014/30/EU and EN 61010-1
Power Supply	4 batteries AAA LR03 1.5V
Battery Life	180h
Ambience	Neutral gas
Conditions of use ( DegreeC,% RH, m)	From 0 to +50 Degree Celsius. In non-condensing conditions. From 0 to 2000 m.
Oprating temperature (probe)	0 - +50 Degree Celsius
Storage temperature	-20 - +80 Degree Celsius
Auto shut-off	Adjustable from 0 to 120min
Weight	250g
Warranty	1 Year

Product Description

• Airflow calculation
• Airflow calculation with cone

•  Selection of units (air velocity, airflow and temperature)
• Display of minimum and maximum values
• Adjustable auto shut-off

• Selection of cone
• Dimensions of rectangular and circular duct
• Automatic average
• Air velocity compensation in atmospheric pressure
• Esay to use
• Adjustable blacklight

• Selection of units
• Hold-min-max functions

Operating Principal:-

• Hotwire anemometer A wire is continuously heated at a superior temperature than ambient and continuously cooled by airflow. Constant temperature is maintained by a regulation circuit. The heating current is proportional to the airflow velocity.

Maintenance:-

• We carry out calibration, adjustment and maintenance of your instruments to guarantee a constant level of quality of your measurements. As part of Quality Assurance Standards, we recommend you to carry out a yearly checking.

Measuring Elements:-

• Hotwire air velocity: thermistance with a negative temperature coefficient. Ambient temperature: NTC sensor


Display:-

• 4 lines, LCD technology. Dimensions 50 x 36 mm. 2 lines of 5 digits with 7 segments (value) 2 lines de 5 digits with 16 segments (unit)

Key Contents:-

• VT 110: straight hotwire probe
•  VT 115: telescopic hotwire probe bent at 90°

• Calibration certificate
• Transport case(ref.: ST110)


Accessories:-

• Magnetic protective housing CQ 15
• Airflow cones K35, K75, K120, K150

• ABS transport case MT 51
