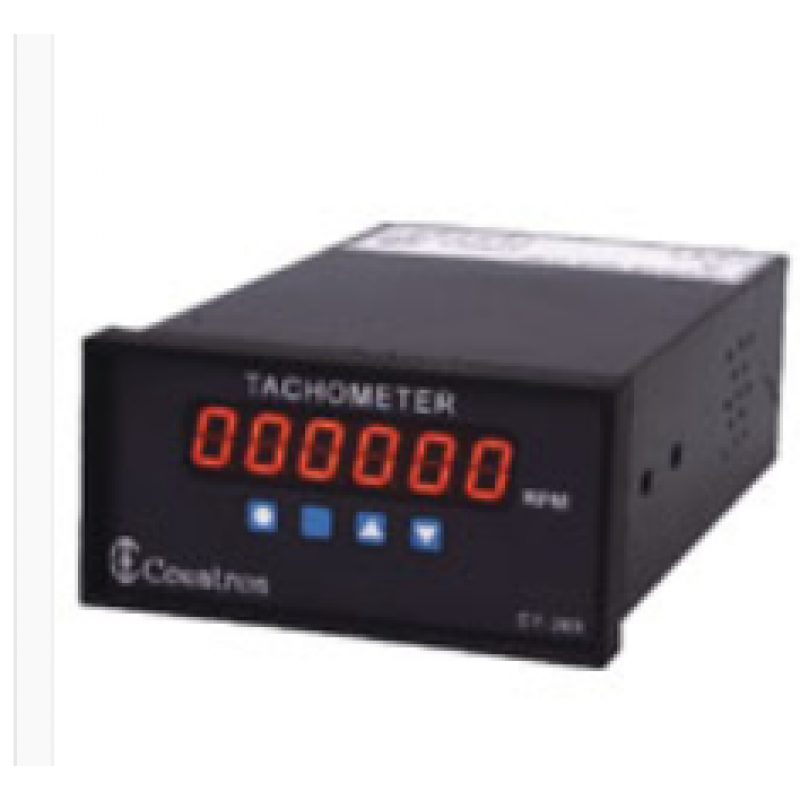

Digital Tachometer with adjustable multiplier
Product Details:
- 6 digit bright 7 segment display for RPM
- Scale factor settable from 0.001 to 999.999
- RPM with resolution from 0.001 RPM to 1 RPM
- Suitable for use with proximity sensor. Can be modified for electromagnetic sensor.
- Rear Scale Factor lock to prevent tampering with scale factor
- Aesthetically designed front panel with touch type membrane switches housed in ABS cabinet
Display | 6 digit 7 segment Red LED display |
Displayed RPM | RPM of shaft x Scale Factor |
Range | 5000.0 RPM for 0.10000 < Scale Factor < 0.99999 500.00 RPM for 0.01000 < Scale Factor < 0.09999 50.000 RPM for 0.00001 < Scale Factor < 0.00999 |
Sensor | Non-contact Proximity sensor to take 1pulse/rev from |
