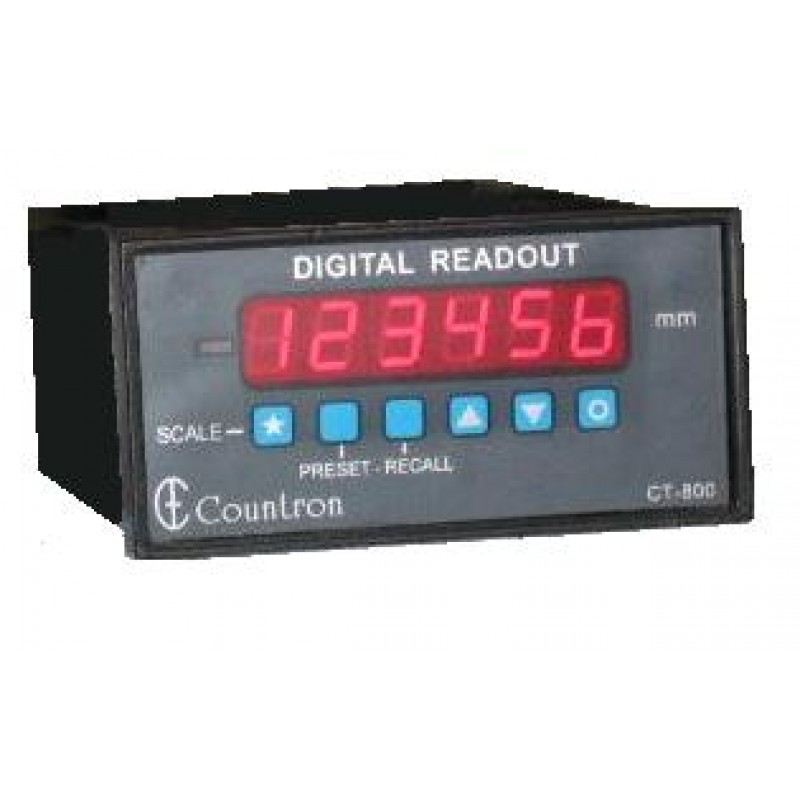

Digital ReadOut Controller
Product Details:

• 6 digit bright 7 segment Red LED display for count display
• Scale factor user settable from 0.00001 to 9.99999

• Two individual set points, one high one low for control action
• 6 digit Preset value user settable

• Pulse multiplication technique used for counting improves resolution 4 times.
• Solid state memory to save user settings and count on power failure

• Program Lock to prevent tampering with settings
• Aesthetically designed front panel with touch type membrane keys

• Housed in plastic ABS cabinet

Display	6 digit 7 segment Red LED display for count display Red LED to indicate negative sign
Input Signal	+5V pulses from Channel A and Channel B of rotary/linear encoder
Encoder Supply	12V DC
Scale Factor	User settable from 0.00001 to 9.99999
Count per Rev.	(Pulses/Rev from encoder) x Scale Factor
Preset Value	User settable from -999999 to 999999
Count Range	-999999 to +999999
Memory	EEPROM to save settings and current count on power failure
Program Lock	By rear jumper (open to lock) to prevent changes in Scale factor Preset value Disables Resetting of Count (Zero) Disables Presetting of Count to preset value
Set Limit Range	0-999999 for both set limits
Control action	Relay-HI on for Count > Set-Hi Relay-Lo on for Count < Set-Lo
Supply	220V AC ± 15%
Size	48mm x 96mm x 180mm
Humidity	Up to 90% (non-condensing)
