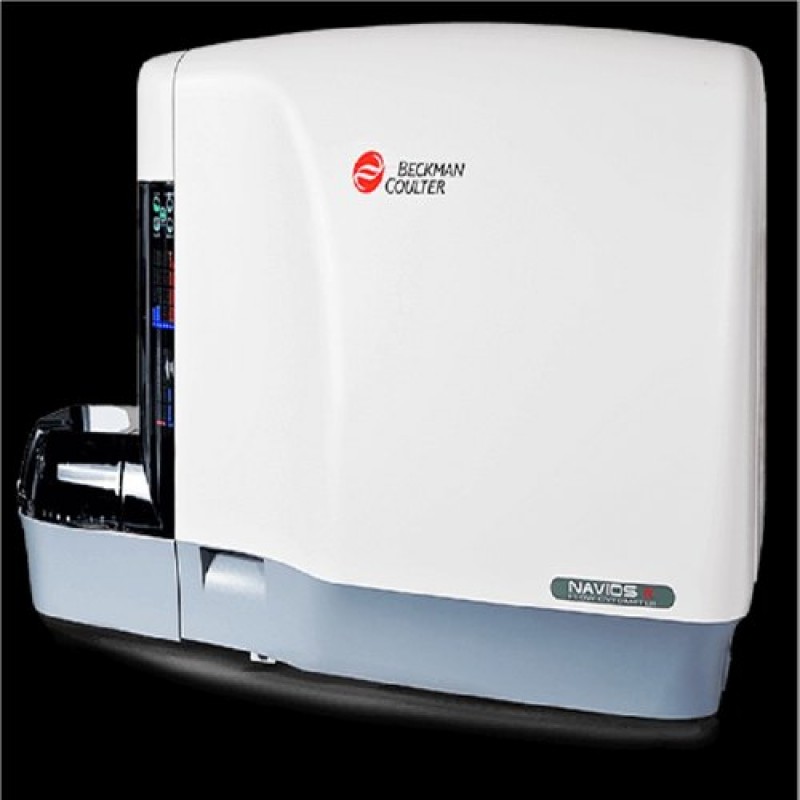

Beckman Coulter Navios EX 10 Color Flow Cytometer
Product Details:

Brand	Beckman Coulter
Software	Navios EX Software
Resolution	HPCV is <2%
Weight	104 kg (229.3 lb)
Width	95.3 cm (37.5 in)
Depth	72.6 cm (28.6 in)
Height	60.5 cm (23.8 in)
Regulatory Status	CE, IVD
Throughput	82 tubes/hour
Performance	<107 MESF for FITC, <64 MESF for PE, <13 MESF for PC5
Detectors	Photodiodes (forward & side scatter), Photomultiplier tubes (fluorescence)
Flow Cell	430 x 180 micro-m rectangular channel
Signal Processing	Digital System with 4 decade data display
Power Requirements	100-240V, 50-60 Hz
Part Number	B83535

The Navios EX Flow Cytometer offers a solution for advanced cytometry applications with workflows for high throughput laboratories. This is the next generation leveraging the laser and optics technology of our successful CytoFlex research platform. Robust performance means peace of mind, because when analyzing important samples, every event matters. This instrument offers 10 colors using 3 lasers.  This configuration includes two fluorescent channels from the violet (405 nm) laser, five from the blue (488 nm) laser and three from the red (638 nm laser).
Up to 12 parameters for high complexity assays*; sensitivity and resolution; and quality, reproducible results
With 10 colors*, collect additional data points from each sample,
Reduce the number of samples to prepare along with the possible pipetting errors
Features:
Optical System:

• Up to three lasers, 488 nm blue laser, 638 nm red laser and 405 nm violet laser
• Solid state independently focused diode lasers
• Integrated flow cell minimizes light loss


Clinical Workflow:

• Task scheduler powers up or off
• Bi-directionally interface with Laboratory Information Systems
• Manage test orders, create work lists, and track samples


Flexible Detection:

• Wide angle scatter for distinguishing cells from debris
• Narrow angle scatter for detecting larger particles
• Scatter signal amplification for submicron particle detection


Stable Performance:

• Thermoregulation system maintains the optical area at a consistent temperature
• Compensation settings maintained over time

• Accurate digital signal processing at high event rates and over time
