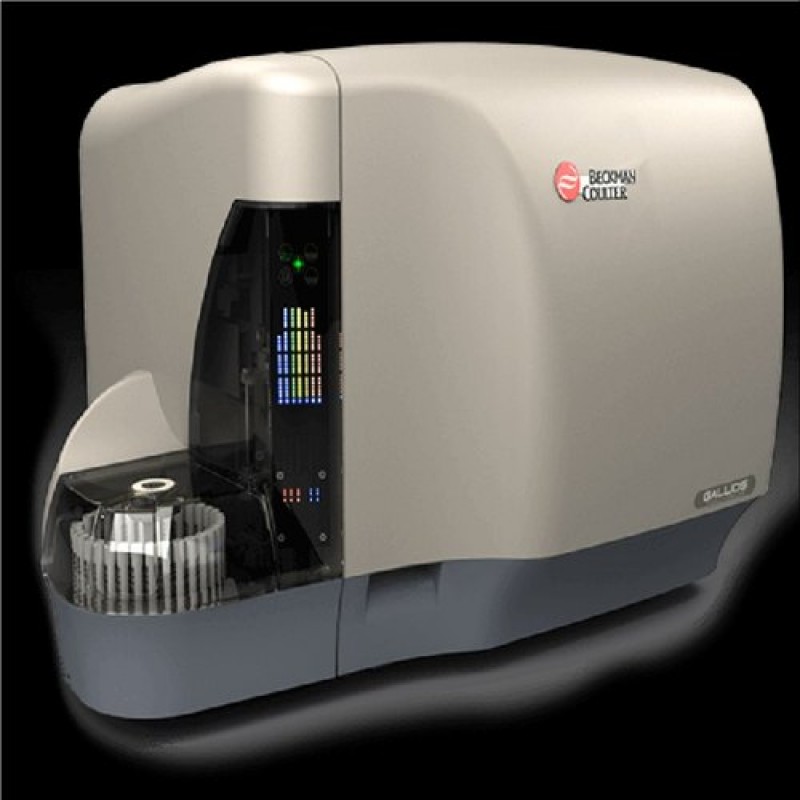

Beckman Coulter Gallios Flow Cytometer
Product Details:

Brand	Beckman Coulter
Weight	104 kg (229.3 lb)
Width	95.3 cm (37.5 in)
Depth	70.1 cm (27.6 in)
Height	60.5 cm (23.8 in)
Software	Gallios
Regulatory Status	RUO
Throughput	80 tubes/hr for 10000 normal whole blood lymphocytes, Upto 88 tubes/hr at 10000 events/second
Forward Scatter Detector	Fourier design (up to 3 measurements of forward angle)
Side Scatter Detector	Independently-focused photodiode with electronic attenuation, Fluorescence: FL1-FL10
Flow Cell	150 x 460 micro-m rectangular quartz gel coupled with 1.2 NA lens
Signal Processing	Dynamic range: 20-bit date acquisition, 1,048,576-channel workstation resolution
Digital Sampling Rate	40 MHz
Digital Accuracy	< 5% error
Power Requirements	50/60 Hz, 100-240V AC
Part Number	B01751

The Gallios Flow Cytometer provides efficient acquisition of up to 12 parameters with advanced optical design for enhanced sensitivity for multicolor assays. With customized forward scatter, to achieve accurate size measurement, and optimized electronics for high resolution and fast, accurate processing, the Gallios was designed for researchers needs.
Automated walk-away processing
Wide dynamic range of fluorescence intensities
Available with Kaluza for Gallios acquisition software
Remote diagnostics minimize downtime
A research system that delivers analytical excellence by coupling extraordinary sensitivity, resolution and dynamic range with high-speed data collection. Along with the unprecedented detection capabilities of the instrument, the Gallios includes easy-to-use software and automation to facilitate superior performance of multi-color flow cytometry assays. Configuration: 10 colors, 3 lasers (488nm blue, 638nm red, 405nm violet) (5 + 3 + 2). Includes Kaluza software.
Features:
System Configuration:

• 2 laser (red and blue), 6 color system.
• 2 laser (red and blue), 8 color system

• 3 laser (red, blue, and violet), 10 color system
• 4 laser (red, blue, violet and yellow/green), 10 color system


Workflow:

• Easy setup of experiments and automated walk-away processing
• QC functionality with Levey-Jennings reports with Gallios CXP software
• Improved software user interface with Kaluza for Gallios Acquisition software.


Set Up and Acquisition:

• 6 decades of sensitivity and resolution to distinguish a wide range of populations easily.
• Vortex of individual tube prior to acquisition

• Adjustable probe for precious samples
• Scatter resolution: Resolves 0.404 µm diameter particles from background noise using forward scatter with maximum detection of up to 40 µm diameter particles

• Kaluza For Gallios Acquisition Software:
• Designed for novice to expert users

• Visual management tools to help you understand what is happening with your experiment and cytometer.
• No user profiles or login require to run acquisition

• Set up a 10 color experiment in seconds
• Offline software for developing protocols

• Simulator to view acquisition of .fcs files which is particularly valuable for training
