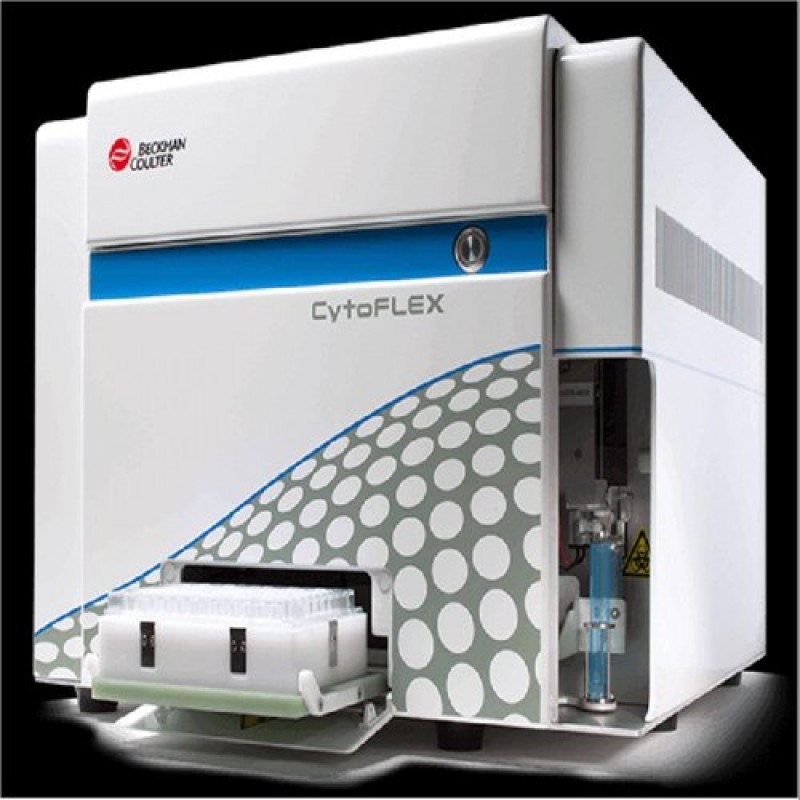

Beckman Coulter CytoFlex V0-B4-R2 Flow Cytometer
Product Details:

Brand	Beckman Coulter
Weight	23.4 kg (51.6 lb)
Width	42.5 cm (16.7 in)
Depth	42.5 cm (16.7 in)
Height	34 cm (13.4 in)
Model Name/Number	CytoFlex
Software	CytExpert software
Regulatory Status	RUO
Resolution	<300 nm particles (488 nm side scatter)
Performance	<30 MESF for FITC, <10 MESF for PE
Detectors	Photodiodes
Signal Processing	Digital system with 7-decade display
Power Requirements	100-240V AC, 50/60 Hz
Part Number	C09748

The CytoFlex Flow Cytometer, the first introduction to the cytoflex platform, provides the performance you need in an easy to use system allowing you to focus on the science, not the instrumentation. Its superior sensitivity and resolution throughout all configurations give it the edge over other cytometry systems four times its size. All instruments in the platform utilize cytexpert for cytoflex acquisition and analysis software.

• Violet-blue-red (v-b-r) series, fully activated with 13 colors or as few as four, activate additional channels in the future
• Includes 13 band pass filters: 450/45, 525/40 (2), 585/42, 610/20 (2), 660/10 (2), 690/50, 712/25, 780/60 (3)
• For higher throughput applications an optional plate loader module is available and for use in regulated environments the software contains tools for 21 cfr part 11 compliance

• CytoFlex V0-B4-R2 Flow Cytometer has 2 active lasers (488 nm, 638 nm) and 6 channels for fluorescence detection. This instrument can be upgraded with a maximum of 5 violet, 5 blue, and 3 red channels. It includes 13 repositionable bandpass filters, 450/45, 525/40 (2), 585/42, 610/20 (2), 660/10 (2), 690/50, 712/25, 780/60 (3). The complete system is supplied with computer work station with cytexpert acquisition software, sheath and waste containers with harness.
  Flow Cell:
• Patent-pending, alignment-free integrated optics quartz flow cell (420 μm x 180 μm ID) design with >1.3 numerical apertureFeatures:

Exquisite Sensitivity:

• Unique collection of innovative technologies provide exceptional detection capabilities
• Large dynamic range to resolve dim and bright populations in the same sample
• Use violet side scatter to detect nanoparticles


Platform Versatility:

• Purchase the number of parameters needed now
• Add more parameters by purchasing an activation key
• Includes full complement of repositionable bandpass filters, non-standard filters also available for even more flexibility


Low Maintenance:

• Lasers, steering optics and flow cell are all mounted onto a vibration isolated table, maintaining optical alignment
• Low pressure fluidics system
• Preventive Maintenance can be completed by the user, no service visit required


Automation Enabled:

• Optional 96-well plate sample loader module
• API (Application Programming Interface) allows external software to control the instrument

• For automated sample processing and data acquisition integrate with the Biomek i-Series Instrument
