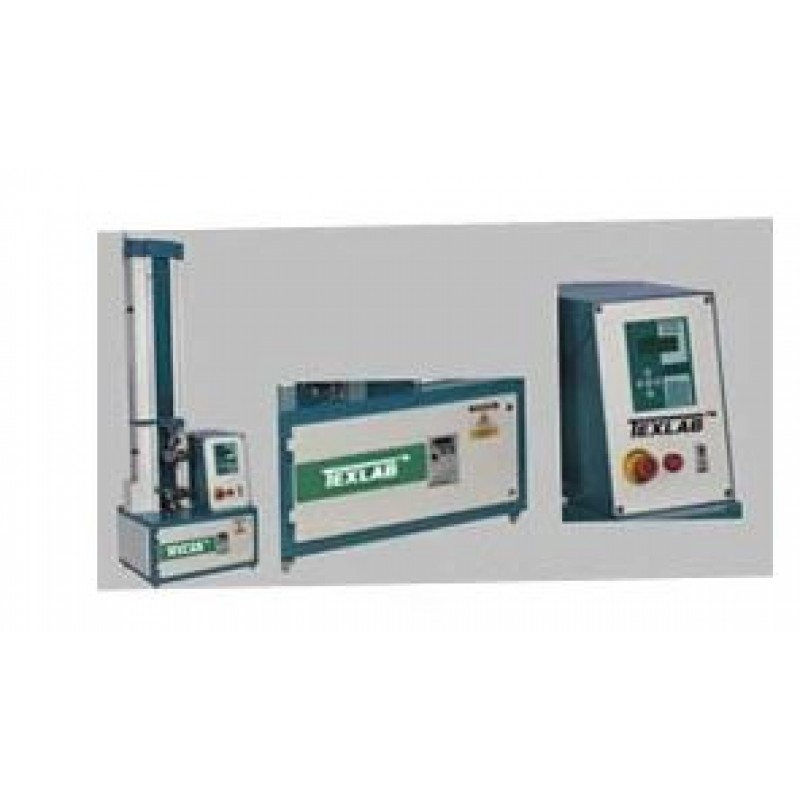

Electronic Tensile Strength Tester
Product Details:
We are instrumental in offering Electronic Tensile Strength Tester to our valued patrons. These offered testers are manufactured using high quality raw material that is procured from the most certified vendors of the industry. Offered range can be availed by us in various sizes, grades and other detailed specifications.

Specifications:

Cap. 10/50kg. LCD & computerized
(B) Capacity 100/500kg LCD & computerized
(C) for lea/fabric & single yarn cap. 5kg to 500kg
Computerized in single machine
(D) for fabric, rubber, metal, strip, plywood, wire & paper with cap. 250kg/10T LCD & computerized
Standards ISO, ASTM, BS, IS
Machine suitable for fabric/lea testing
Single screw heavy duty frame structure balance load facility for smooth working and operation
Machine is floor mounted model with microprocessor based computer supported software system
Machine can work on both directions tensions
Machine is suitable for fabric/yarn lea application (strength & elongation)
Machine is fully digital model with accuracy
Speed selection is 300mm & 450mm speed AC drive
Speed change settable with digital key pad on AC drive
Extension resolution 0.01mm
Extension accuracy: 1mm
Extension measurement grip to grip
Force measurement and detection via digital load cell
Accuracy 0.5% of applied force
Real time graph of load vs extension is displayed during the test
User can convert graph into stress vs. strain at any instant
Easily unit conversion facility also available after completion of the test
Easy storage and retrieval of test profiles
Manual cross head, up, down, stop control
Input of test data formatting of test report via. computer software
Note: computer with printer is required at customer end
The same has to be arranged by you at your cost
Computer features having windows XP loaded software and Microsoft office 2003 loaded PC
Load cell: 1 no
Range: 250kgf
Least Count: 0.01kg and accuracy 10 gms at 250kgf
Load cell is permanently fixed. No Need to change any fixture
Window based test software supplied along with the machine
Load Cell -1 no
Range: 500kgf
Least count: 0.1kg and accuracy 10 Gms at 500 kgf
Load cell is permanently fixed. no need to change any fixture
Window based test software supplied along with the machine
Grips and fixtures
Note: computer with printer is required at customer end
Computer features having windows XP loaded software and Microsoft office 2003 loaded PC
