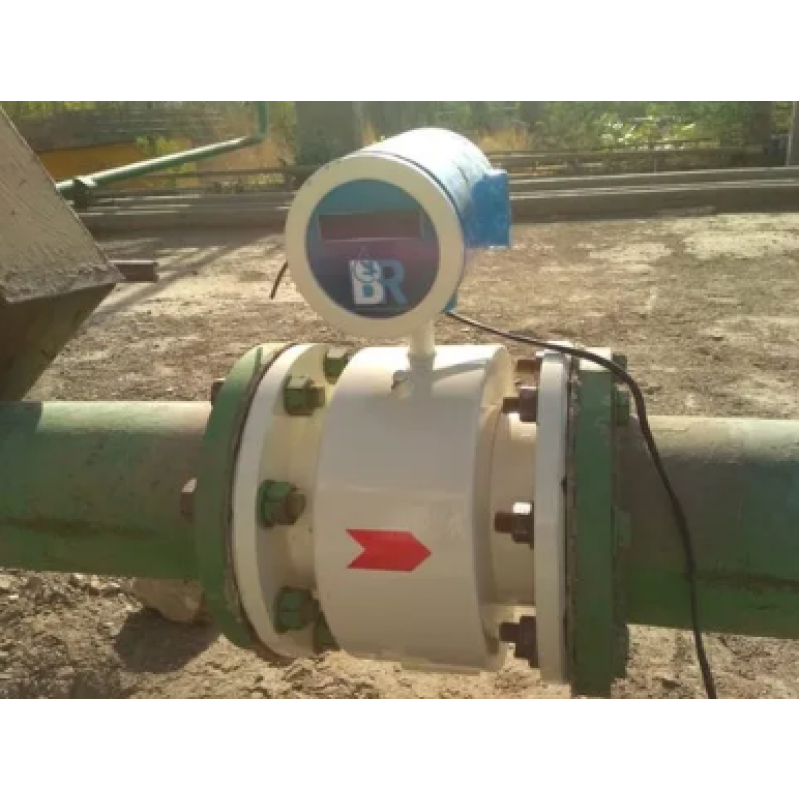

Electromagnetic Flow Meters Local Transmitter
Product Details:

Model Name/Number	e-MAG (L)
Power Supply	24 VDC / 230 VAC
Electrode Material	Hastelloy C,SS 316
Environment Temp.	0 -150 Deg C(Depends on liner)
Line Size	15-1000 mm
Output Current	4-20 mA,Relay,Pulse,RS 485,Data logging
Flow Meter Sizes	DN 2 to DN 2000
Body Material	MS or SS
Velocity Range	0. 2 to 10 m/s
Lining Material	PTFE,Rubber,Other as Per Request
Coil Housing	NBR Hard Rubber/EPDM/PTFE/EBONITE
Transmitter	Local (Integral)
Flanges	ANSI/DIN/BS/SMS/Tri-Clamp/Sandwich
Series	e-MAG 100

We are the Manufacturer of Local Transmitter Electromagnetic Flow Meters. Made with higher precision these are used for measuring the voltage generated which is proportional to the flow velocity. We offer these flow meters used in water & waste water, food & beverages and chemical & pharmaceutical industries.
