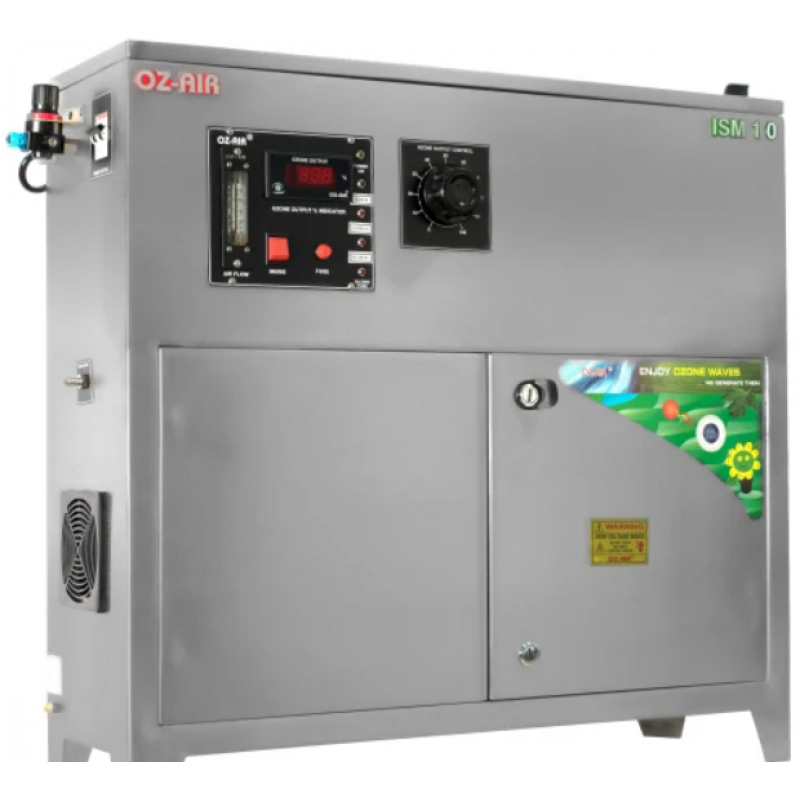

Economy Ozone Generators

Product Details:

Minimum Order Quantity	1 Piece
Type	Ozone Generator
Feed Gas	Compressed Air
Brand	OZ- AIR
Voltage	220 V
Frequency	50 Hz
Rate	0.25 to 4 gr/hr

We are offering Economy Ozone Generators to our clients.

Features:

• Advance technology
• Efficient Ozone generation
• Micro processor controlled
• High voltage, modulated frequency
• Corona discharge
• Efficient air cooling
• Low maintenance requirement
• Economical and compact design
• Flexible design as per the requirement

Applications:

• Mineral water disinfection
• Drinking water treatment
• Swimming pool water treatment
• Environment air treatment
• Medical area sterilization
• Numerous other applications

Economy range of Ozone Generators (Without Feed Gas System)

Models	Nominal Rating gms/hr Ozone		Module Pressure kg/cm2		Feed Gas		Power (W)	Dimensions LxBxH (In mm)	Weight (kgs)
	Dry Air	O2	Air	O2	Oxygen LPM	Air LPM
OZ-Air 0.5 OXY	0.3	0.5	0.5	0.35	1	1	40	450 x 350 x 220	9
OZ-Air 1 OXY	0.6	1	0.75	0.4	1	2	60	750 x 450 x 220	33
OZ-Air 2 OXY	1.2	2	0.75	0.4	1.5	3	70	750 x 450 x 220	35
OZ-Air 3 OXY	1.8	3	0.75	0.4	2	4	90	750 x 450 x 220	38
OZ-Air 4 OXY	2.4	4	0.75	0.4	2.5	5	110	750 x 450 x 220	41

Request
Callback

Additional Information:

• Production Capacity: 50-100 per month
• Delivery Time: 1-2 Weeks
• Packaging Details: As per requirement
