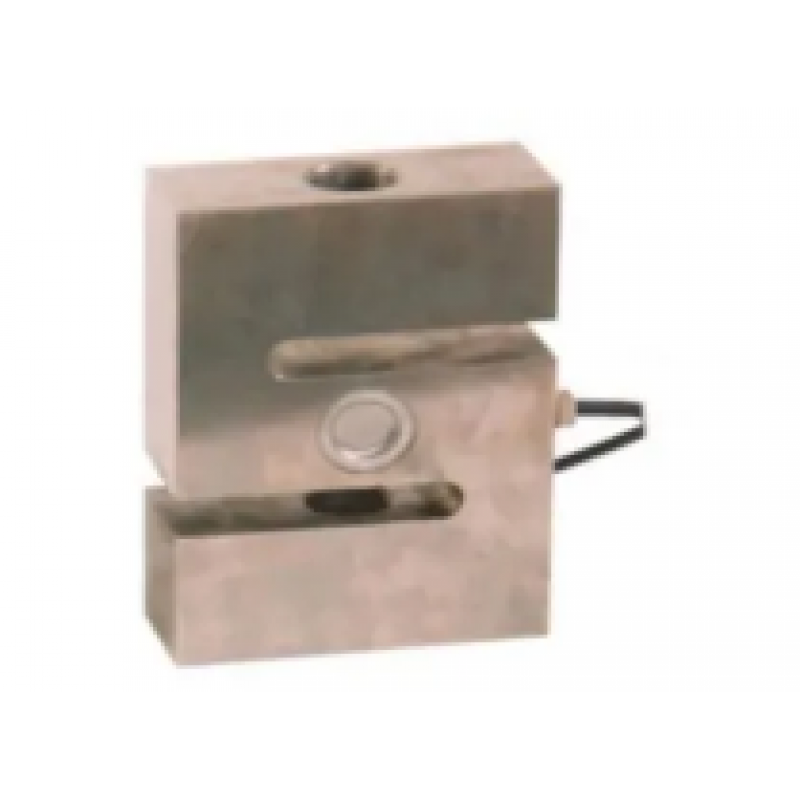

ESL S Type Load Cell
Product Details:

Capacity	11.5 Ton
Application	Tensile Testing Machine
Features	High Accuracy & Precision
Output Sensitivity(FS)	2.0 +/- 0.1 mV/V
Creep Error (30 minutes)	+/- 0.03% FS
Temperature Effect on Zero	+/- 0.020 % FS/DegC
Temperature Effect on Output	+/- 0.012 % FS/DegC
Zero balance	+/- 2.0% FS
Maximum Safe Overload	150% FS
Recommended Excitation Voltage	5 to 12V DC
Maximum Excitation Voltage	15V DC
Input Resistance	400 +/- 30 Ohm
Output Resistance	350 +/- 3 Ohm
Insulation resistance at 50V DC	>= 1000 M Ohm
Compensated Temperature Range	-10 to +40 Deg C
Operating Temperatue Range	-20 to +70 Deg C

ES are high performance, low cost, Shear S-type load cell with excellent sensitivity and repeatability. The design is suggested for the Tension and Compression, hanging type-weighing application, which includes Testing Machines, Tank Weighing, Hopper Weighing, Mechanical Platform Scales and Weigh-bridges etc. And are also very widely used for the conversion of the existing machines to electronics.
