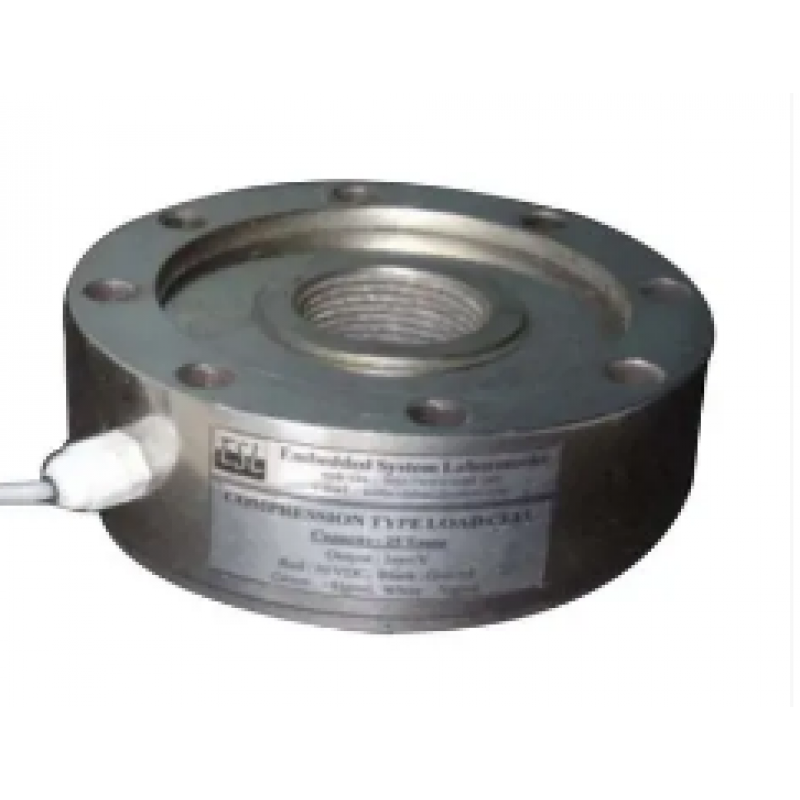

ESL Compression Type Load Cell
Product Details:

Capacity	30 Ton
Material	Stainless Steel
Application	Truck Scales
Features	Hermetically Sealed
Creep Error (30 minutes)	+/- 0.03% FS
Temperature Effect on Zero	+/-0.020% FS/DegC
Temperature Effect on Output	+/-0.010% FS/DegC
Zero balance	+/- 2.0% FS
Maximum Safe Overload	150% FS
Recommended Excitation Voltage	5 to 12V DC
Maximum Excitation Voltage	15V DC
Input Resistance	200 +/- 50 Ohms
Output Resistance	175 +/- 25 Ohms
Insulation resistance at 50V DC	>= 1000 M Ohm
Compensated Temperature Range	-10 to +40 Deg C
Operating Temperature Range	-20 to +70 Deg C
Cable Length	2-20 m

EC are high performance, low cost, Pancake-type loadcell with excellent sensitivity and repeatability. The design is suggested for the Compression & Tension, which includes Testing Machines. And are also very widely used for the conversion of the existing machines to electronics

Being a leading firm in this industry, we are deeply engaged in offering a high-quality range of Compression Load Cell.Features
Multicoloumn construction
Hemetically sealed
Application:
Truck scale
Hopper Weighing
Industrial Automation
