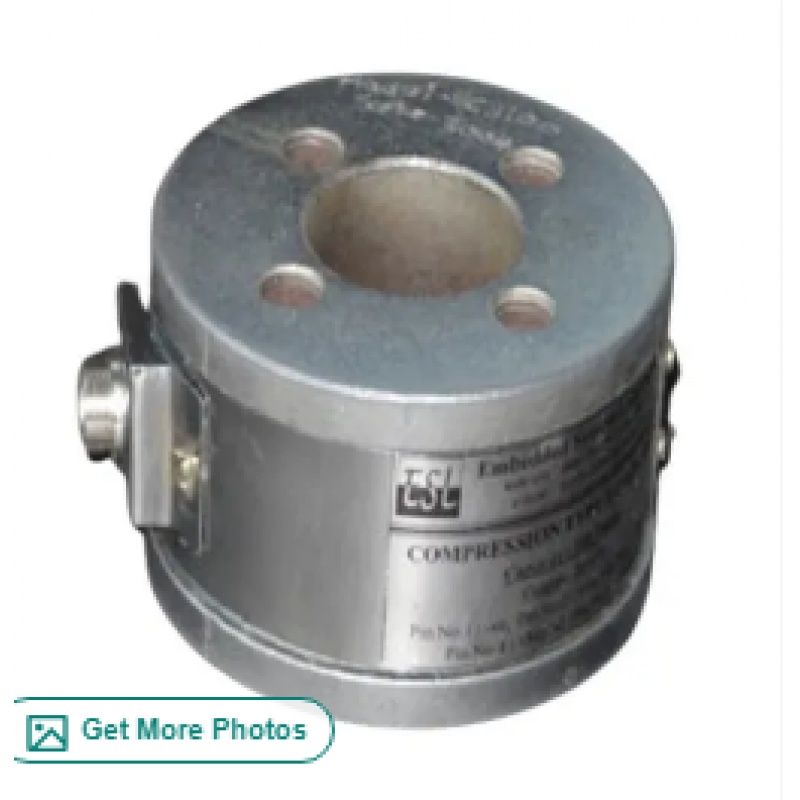

ESL Compression Type Load Cell
Product Details:

Capacity	30 Ton
Material	Stainless Steel
Ingress Protection	IP68
Application	Truck Scales
Features	Hermetically Sealed
Temperature Effect on Zero	+/-0.020% FS/DegC
Temperature Effect on Output	+/-0.010% FS/DegC
Zero balance	+/- 1% FS
Maximum Safe Overload	150% FS
Recommended Excitation Voltage	5 to 15V DC
Insulation resistance at 50V DC	>= 1000 M Ohm
Compensated Temperature Range	-10 to +40 Deg C
Operating Temperature Range	-20 to +70 Deg C
Cable Length	2-20 m

EC are high performance, low cost, High Capacity Compression Type Load Cell with excellent sensitivity and repeatability. The design is suggested for the Compression, which includes Testing Machines, Mechanical Platform Scales and Weigh-bridges etc. And are also very widely used for the conversion of the existing machines to electronics.

Being a leading firm in this industry, we are deeply engaged in offering a high-quality range of Compression Load Cell.
Features
Multicoloumn construction
Hemetically sealed
Application:
Truck scale
Hopper Weighing
Industrial Automation
