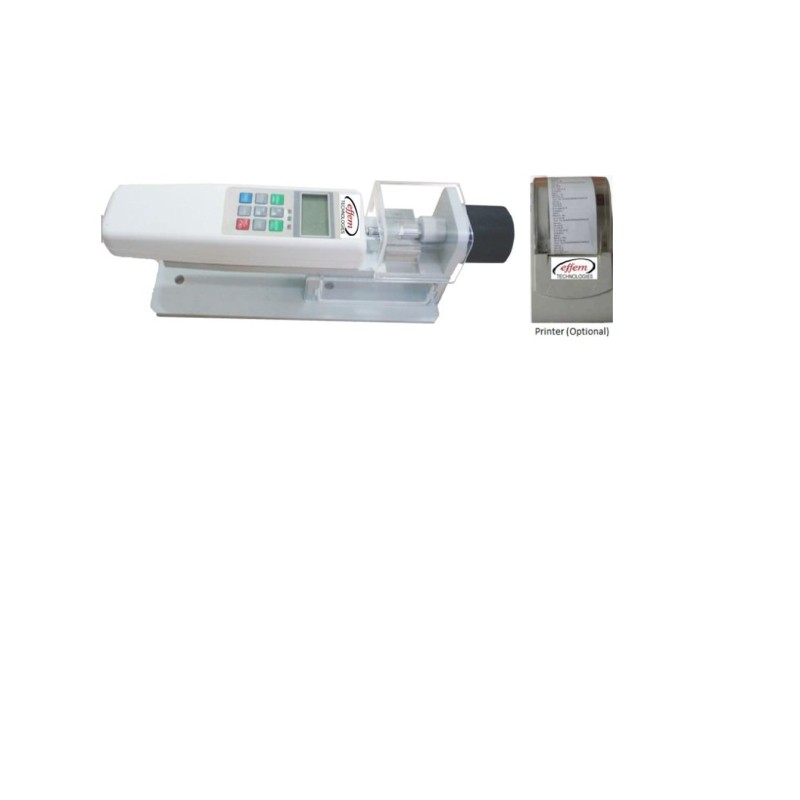

EFFEM PORTABLE TABLET HARDNESS TESTER
Product Details:
Effem Portable Instrument which can measure the breaking point of Tablets ranging from 2mm to 28mm the tester
Measures the compressive force with an accuracy of ± 0.5% and measures with display the peak force used to
fracture the tablets. The instrument also reduces unnecessary costs to produce tablets out of specified Hardness Range.
Our Portable Tablet Hardness Tester is ideally suited for the Pharmaceutical, Food, Dairy, and other Industries that require compressed Tablets.
Features:
Hardness Measurement by Load Cell up to 500 Newtons.
Units of Measurement in N, Kgf and lbf.
Programmable Upper (T1) and Lower (T2) Tolerance Limits.
Automated Semi-Calibration. (Zero-Point Adjustment)
Display of 10 Test Value and calculate the Average of the Memorized Value.
Portable Tester operates on Re-chargeable Battery.
PC Connectivity through RS232 Port.
LCD Display with Backlight.
Acrylic Glass Safety cover with Disposal Container.
Specifications:
Model ETHT-2 ETHT-5 ETHT-10 ETHT-20 ETHT-50 ETHT-100 ETHT-200 ETHT-500
Capacity 2N 5N 10N 20N 50N 100N 200N 500N
Resolution 0.001N 0.001N 0.005N 0.01N 0.01N 0.05N 0.1N 0.1N
Accuracy ± 0.5%
Tablet Size 2mm - 28mm
