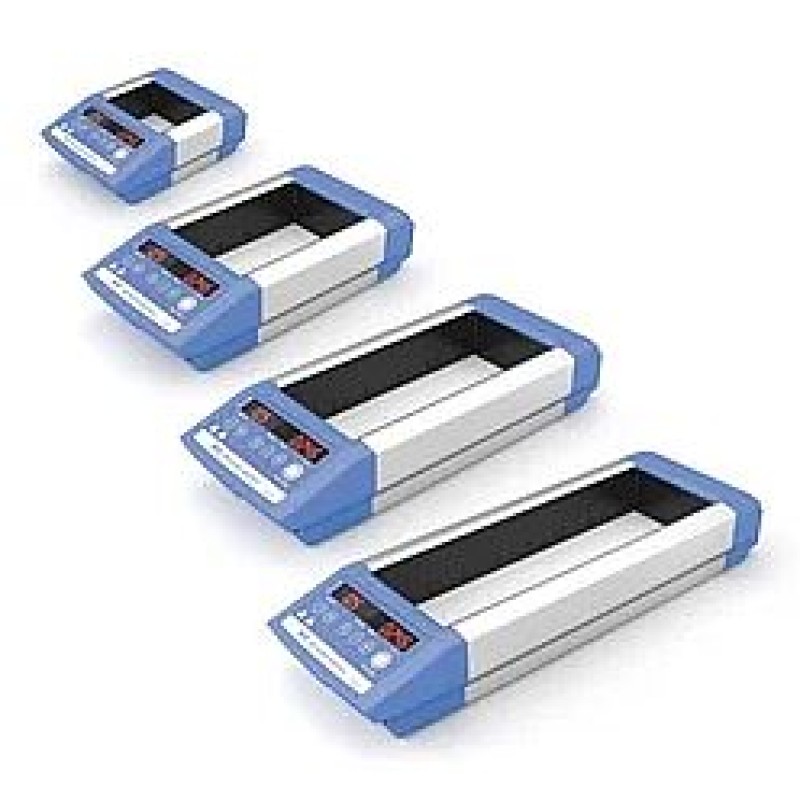

Dry Block Heater IKA
Product Details :
| Minimum Order Quantity | 1 Piece |
| Model Name/Number | DBH |
| Display Type | Digital |
| Material | Stainless Steel |
| Voltage | 220 V |
| Power | 10 W |
| Heater Material | MS |
| Brand | IKA Germany |
| Country of Origin | Made in India |
Digital block heater for one aluminum block provides precise temperature control in small vessels. Included PT-1000 temperature sensor allows temperature control directly in the sample vessel. It is used with PCR tubes, PCR strips, Greiner tubes, microplates and cuvettes. The block heater is ideal for melting and boiling point determination, enzyme reactions, incubation and activation of cultures, immunoassay, DNA denaturation, culture media tests, coagulation tests, blood-urea-nitrogen determinations and in situ hybridizations.
Features:
- Stepless adjustable temperature up to 120 °C
- Timer: Countdown, adjustable from 1 min to 99h 59min
- Counter: Display of heating time
- Highly versatile with a large number of blocks
- Error code display
- Fixed safety circuit
- Acoustic signal at end of test
Technical Data:
| Number of blocks | 1 |
| Heat output | 165 W |
| Heating temperature range | room temp. +5° – 120 °C |
| Temperature display | yes |
| Adjustment and display resolution | 1 K |
| Connection for ext. temperature sensor | CT (DIN12878) |
| PT 1000 variation;DIN EN 60751 Kl. A | ≤ ± (0,15 +0,002xITI) K |
| Temperature stability within the blocks at 37°C * | 0.2 ±°C |
| Temperature stability within the blocks at 60°C * | 0.4 ±°C |
| Temperature Uniformity @ 37°C * | 0.2 K |
| Temperature Uniformity @ 60°C * | 0.4 K |
| Heatingrate / Heat up time with external sensor * | 5 K/min |
| Set-up plate material | Aluminium alloy |
| Set-up plate dimensions | 96 x 76 mm |
| Fixed safety circuit | 150 °C |
| Timer | yes |
| Time setting range | 1 – 5999 min |
| * Measured in IKA DBH Testingblock | Refer Manual for more details |
| Dimensions (W x H x D) | 151 x 73 x 228 mm |
| Weight | 1 kg |
| Permissible ambient temperature | 5 – 40 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 21 |
| USB interface | no |
| RS 232 interface | no |
| Voltage | 220 – 240 / 115 / 100 V |
| Frequency | 50/60 Hz |
| Power input | 165 W |
Additional Information:
Production Capacity: 100
Delivery Time: 1 Week
