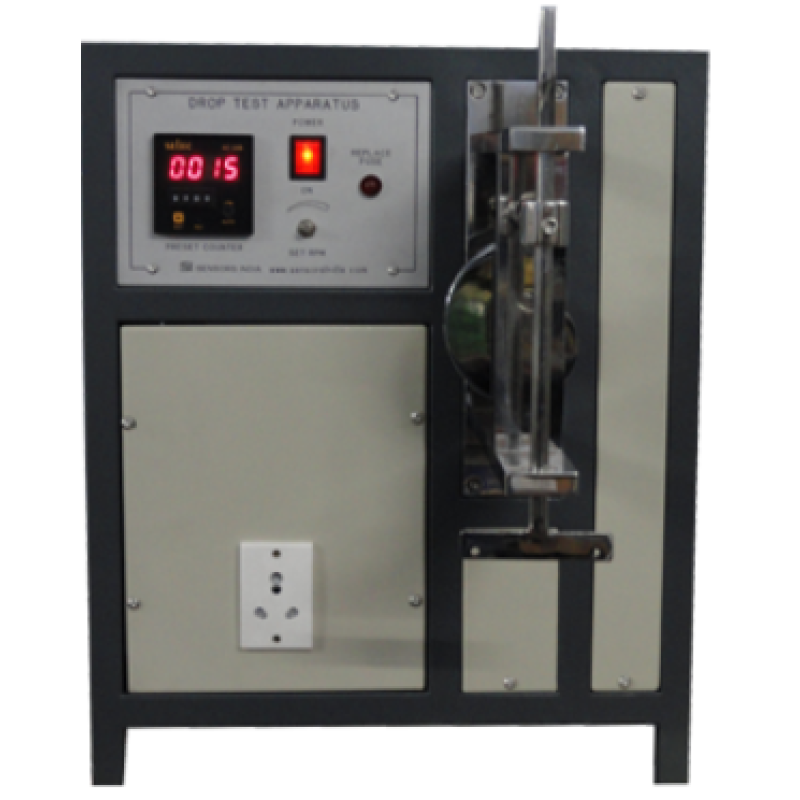

Drop Test Apparatus

Drop test apparatus as per IEC: 60335-2-3 having arrangement to drop the Iron form required height (Duly adjustable cam with demarcation for fall)  on Iron plates @ required falls per minute,  (variable drive for change in falls per minute easy to adjust accurately) duly fitted with socket and switches.

The test system consists of failure detection, in case of appliance fails the falling system will stop. The machine is operates through a TEFC FHP motor and heavy-duty gearbox very part of apparatus is machine made and duly finished in chrome and powder coated. Geared motor, to drive the lifting device  Digital 6-digit counter is fitted in machine to count the Falls / drops per minute with memory feature.

Falling assembly consist of mounting arrangement fastening the specimen, with a camof 40 m.m. (Duly adjustable cam with demarcation for fall). Switch-gear, with main switch, fuses and preset number of strokes with complete safety box made of aluminum section and poly carbonate box with vent and latch switch. With Iron failure detection system. The apparatus is fully equipped with required accessories, indicating meters and counter.
