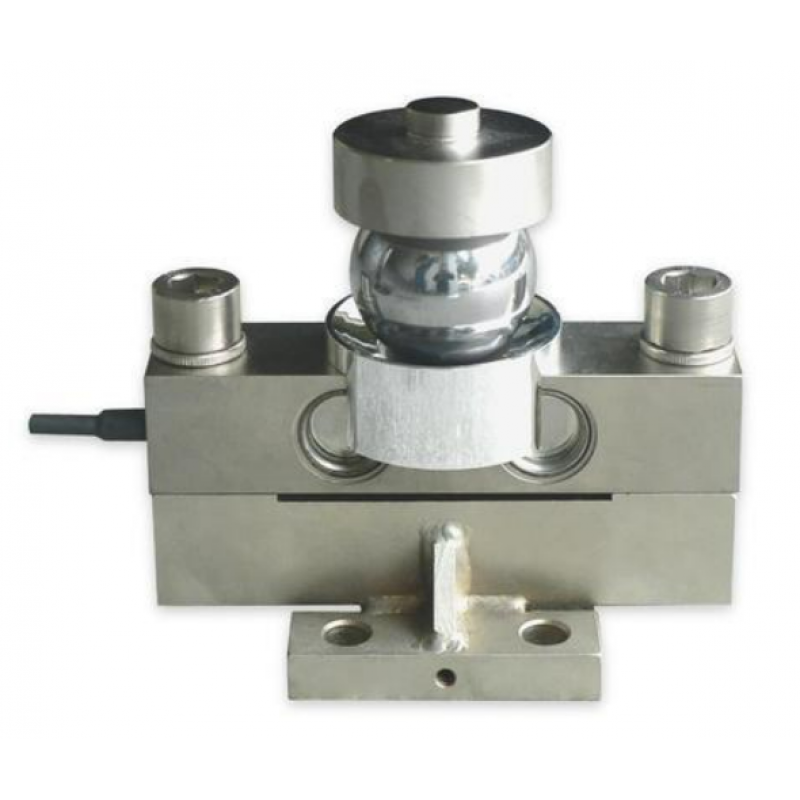

Double Ended Beam Load Cells

Product Details:

Brand	Goldtech
Capacity	5,10,15,20,25,30-T
IP Rating	lp66
Cable Length (4 Core Screened)	1500 Cm.
Ultimate Overload of Rated Capacity	300.00%
Safe Overload of Related Capacity	150.00%
Normal Output	2.0 mv
Finish	Electronic Nickel Plated tool Steel

We are an acclaimed name engaged in offering our precious clients a superior quality range of Double Ended Beam Load Cells. These shear beam are designed by our professionals using high grade raw material and advanced technology in compliance with the international quality standards. In addition to this, our products undergo various tests under the supervision of quality controllers to ensure its flawlessness. Moreover, our clients can avail these shear beam from us at industrial leading rates.

Features:

• Compact design
• Trouble-free operation
• No temperature effect

Detailed Specifications:

Standard Capacities	5,10,15,20,25,30-Tf
Excitation Voltage	0.5~24-Max. 36 V AC/DC
Normal Output	2.0 mv/v ±0.25%
Non - Linearity	<±0.023% FSO
Hysteresis	<±0.023% FSO
Non - Repeatability	<±0.017% FSO
Creep (30 minutes)	<±0.2% FSO
Zero balance	±2% FSO
Input Resistance	770±30 Ohms
Output Resistance	700±5 Ohms
Insulation Resistance (50VDC)	2000 Mega Ohms
Temp Compensated Range	-10 ~ 40ºC
Temperature Effect on Output	<0.0017% FSO /ºC
Temperature Effect on Zero	<0.0040% FSO /ºC
Finish	Electronic Nickel Plated tool Steel
Construction	lp66
Environmental Protection Class	Weigh bridge Truck and Truck Scales
