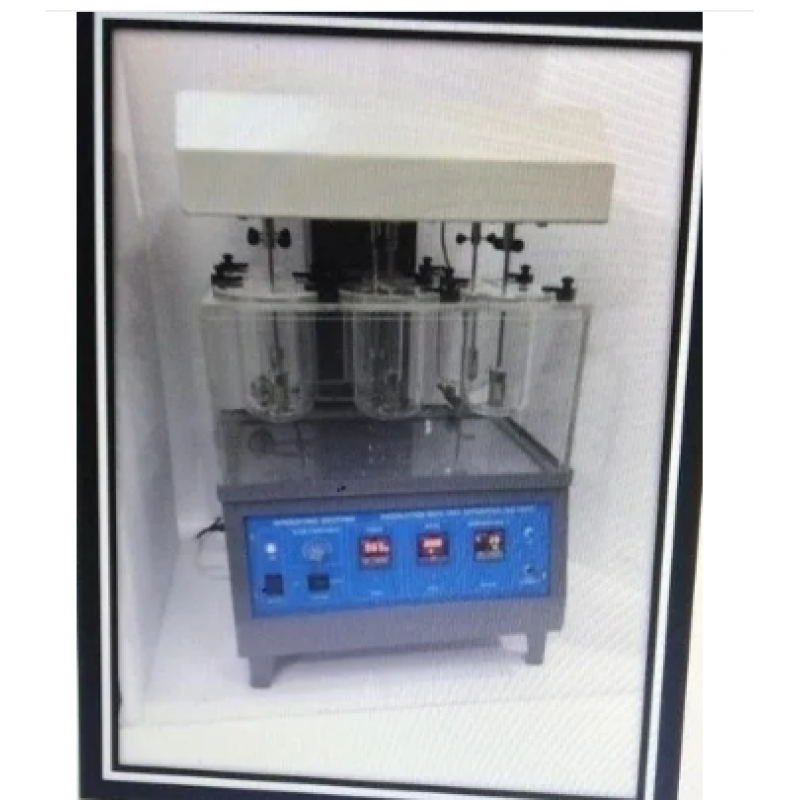

Dissolution Test Apparatus six test
Product Details:
Country of Origin | Made in India |
Material | SS |
Voltage | 220 V |
Frequency | 50 Hz |
Phase | Single Phase |
The main unit is constructed with thick MS CRC Sheet Duly powder coated and is based on heavy thick cast iron plates for study balance and equilibrium and prevention of the topels.
The lift jack unit is mounted at the back side of the main instrument with thick heavy base and is covered with m s sheet for the prevention of the dust and damages.
The unit is designed in such a way that it is easy to assemble. All the electrically sockets are provided at the back of the unit, which is labeled, and all the male sockets are designed in such a way that it cannot be interconnected in any way. Just plug in all the sockets the instrument is ready to use.
1. ACRYLIC BATH:-
Made from 8mm thick transparent acrylic sheet chemically welded for leak proof. The top cover is removable for the easy asses and for cleaning. The top cover has the six/three similar hole to accommodate the glass jars meant for the particle.
The top bath cover is having the three/six jar covers for the class jars which cover the glass jars while again while working without disturbing the practical.
The whole acrylic bath is projected by stainless steel plates. At the top and at bottom and is holed with four solid bars which is again tighten by knurled screws. It hells from getting damage in transits and in transportation.
The Acrylic jar has two taps at the back of the jar for easy drainage of the water.
Dissolution Test Apparatus six test
