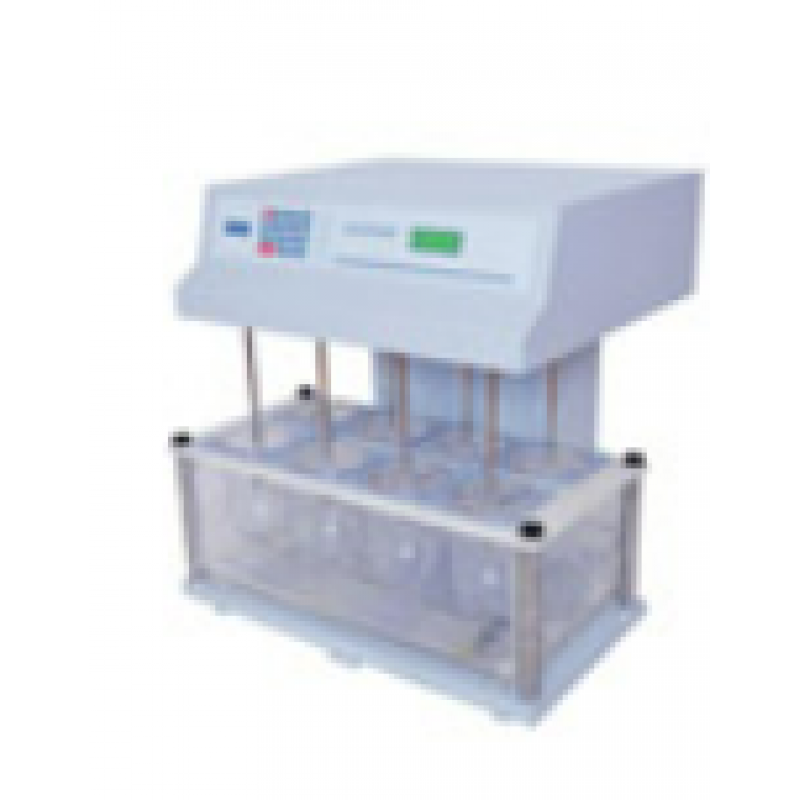

Dissolution Test Apparatus

Routinely used in pharmaceutical industry for drug development and quality control, dissolution testing is widely accepted method to understand the bioavailability of dosage forms (tablets and capsules) which, is important to understand the rate at which the tablet or capsule dissolves in the gastrointestinal tract, and releases the drug substance in the body. This bioavailability measurement process is precisely achieved by Dissolution Test Apparatus or Dissolution Tester. This instrument simulates the environment of the human gastrointestinal tract.

At Panomex Inc. our technical team has designed a range of dissolution testing instruments using industry leading technologies ensuring accurate and fast determination of dissolution properties of all types of drug products and dosage forms. These instruments comply with IP and USP specifications and suitable for pharmaceutical research and production activities.

Our dissolution test apparatus are solid state instruments that feature 20 x 4 Line alphanumeric LCD display with Backlit and 19 soft touch membrane key panel for convenient data input. User friendly prompts guide users throughout the measurement process. Depending upon type of use, these units are available with 8 and 6 station models; each model has memory storage facility up to 200 samples, data is stored in different batches and sample numbers.

These dissolution testers are supplied as complete system including machine and useful accessories such as reaction vessels with covers, acrylic tank, water bath temperature sensor, external temperature sensor (T2) for vessel, paddle, wire mesh basket, pipettes etc.

These units have three programming modes i.e. Routine, Sustain and Control modes; 20 different test methods can be performed using Routine and Sustain modes which, are retained in the memory even after machine is switched off. Provision to attach a dot matrix printer has been given; reports of stored setups and test results can be printed.

These systems equipped with microprocessor circuit to deliver highly convenient and fast testing procedure. In case of power failure, when instrument is switched ON again, it gives an option to user to start the test from the point, where it has stopped.

While our dissolution tester range is price competitive, our engineering team is available for any custom designing and fabrication requirements. In addition to national sales, these systems are also exported worldwide at factory price.

Features
Models available in 8 & 6 stations	Complies with USP, IP specifications
Programmable stirrer 25 - 200 RPM	20 x 4 Line Alphanumeric LCD with Backlit
19 Soft Touch Membrane Type Keys	20 Independent Programmable Setups
Up to 200 samples memory storage	Provision to attach dot matrix printer
Audio visual alerts for system status	Last sample can run in case of power faliure

Specifications
Model	PX/DTA-1918	PX/DTA-1916
Stations	8	6
Reaction Vessel	1000 ml (8 Nos.)	1000 ml (6 + 1 Nos.)
Display	20 x 4 Line Alphanumeric LCD display with Backlit
Keyboard	19 soft touch membrane keys
Program Modes	Routine, Sustain and Control mode. Facility for 20 different test setups available in Routine and Sustain mode.
Printer	Provision for the attachment of dot-matrix printer
Stirrer	25 - 200 RPM
Temperature	30 - 50°C
Heater	1 KW
Power	230 V ± 10%, 50 Hz. AC
Accessories	- Acrylic Tank & Rectangular Cover Plate - Water Bath Temperature Sensor (T1) - External Temperature Sensor (T2) for Vessel - Round Acrylic Cover Plate w/ Hole & slit - (8 - 6 Nos.) - S.S. Paddle, S.S Wire Mesh Basket - (8 - 6 Nos.) - Glass pipettes with rubber bellows

Specifications
Model	PX/DT-912	PX/DT-1912
Images
Mode	Manual	Digital LCD display with Backlit 15 soft touch membrane keys Facility for 20 different test setups Dot Matrx Printer port
Stirrer	Speed: 25-200 RPM + 1 RPM Resolution: 1 RPM Accuracy: + 1 RPM Depth Adjustment: 25 mm to 40 mm	Speed: 25 – 160 RPM + 1 RPM Resolution: 1 RPM Accuracy: + 1 RPM Depth Adjustment: 25 mm to 40 mm
Temperature	Range: 100°C – 50°C Control: Thermostat 0-85°C	Range: 100°C – 50°C Control: Microprocessor Based using PT100 / Semiconductor Sensor
Sampling	Reaction Vessel: 1000ml jar w/ stirrer pedal & basket Heater: 1 kw Dimension (L x B x H): 320 x 320 x 375 mm	Reaction Vessel: 1000ml jar w/ stirrer pedal & basket Heater: 1 kw Dimension (L x B x H): 330 x 300 x 660 mm
Accessories	Main Unit with acrylic tank and rectangular cover plate Reaction vessel – capacity 1000 ml Round acrylic cover plate with hole and a large slit Stirrer motor with tightening knob S.S. paddle, stirrer shaft and clamp SS wire mesh basket Glad thermometer, s.s. support rod fitted w/ acrylic block	Main Unit with Acrylic Tank and Rectangular Cover Plate Reaction Vessel – Capacity 1000 ml Round Acrylic Cover Plate w/ Hole and a large slit Stirrer Motor w/ Tightening Knob S.S. Paddle, Stirrer Shaft and Clamp S.S Wire Mesh Basket S.S. Support Rod fitted w/ Acrylic Block
