Dissectible Machine Trainer
Product Details:

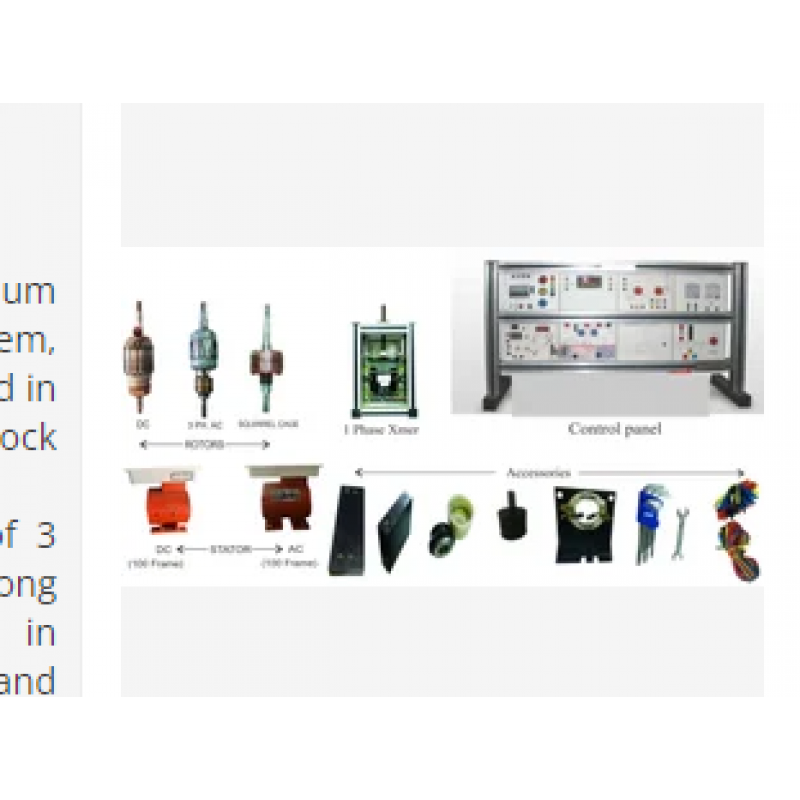

• Light weight, yet sturdy tabletop, Aluminum profile modular flat demo panel rack(4x2) system, carrying various high volt., components housed in plastic enclosure(panel) to minimize shock possibilities.No hidden parts.
• Offers standard 0.5 Hp working models of 3 phase AC slip ring m/c & DC integrated m/c along with Squirrel cage rotor & accessory in completely knocked down form, without fans and bearing end plates, which are replaced by plummer blocks
• Both the motors are individually mounted on the table top chassis & can be coupled together
• Students can disassemble them and reassemble these using accessories viz. screw driver, nut driver, spanners, shims, allen keys
• Stator supplied with end plates removed so that the internal construction is visible. Brush plate holder is used for holding the brushes in position.
• The speed of the motor can be controlled thus regulated with SCR actuator panel, & can be measured with a speed sensor arrangement
• Facilitates easy and safe wiring by students due to use of 4mm sturdy Shrouded banana patch cords and shrouded socket arrangements for high voltage circuits. Transparent acrylic cover for the safety purpose
•1 phase Xmer, 0.5 Hp in dissectible form
•Set of Instructor Guide & Student Workbook.
