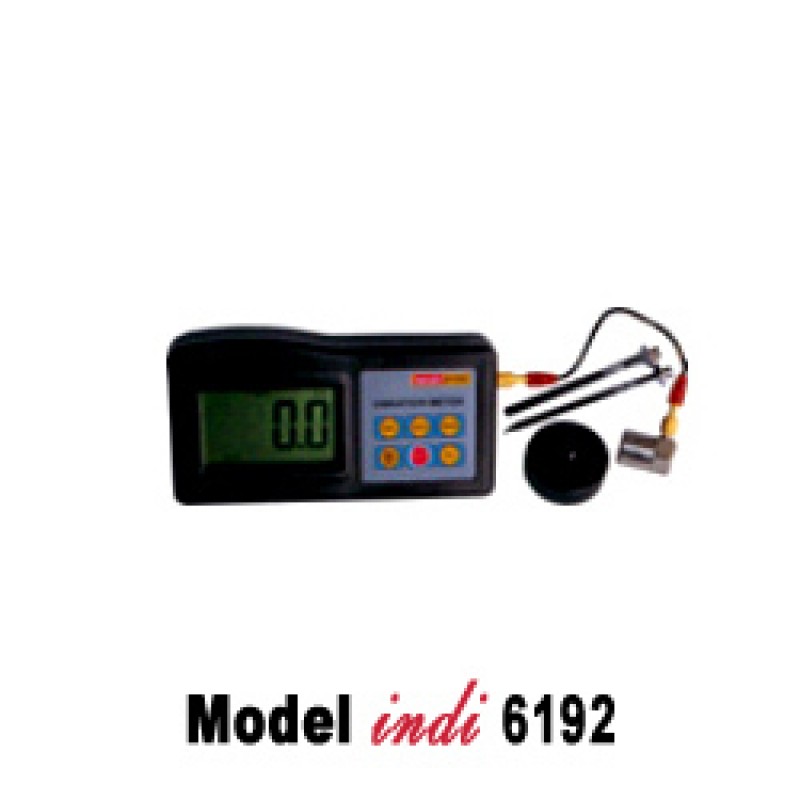

Digital Vibration Analyzer

Product Details:

Model Name/Number	6192
Usage/Application	Laboratory Use
Display	Digital
Color	Box
Battery Life	Yes
Frequency Range	Up to 50 Hz
Brand	Source 1

We are able to gain immense expertise in delivering Digital Vibration Analyzer to our clients. The offered range of digital vibration analyzes is made utilizing high grade raw material and innovative technology in complete adherence with the international quality standards. Along with this, the offered range of digital vibration analyzes is applicable in different tasks such as labs, educational institutions & universities.

Features:

• Portable
• Compact unit

• Easy to use
• Analog display surface-mount technology

• High reliability

• Specifications :
  Display	4 Digit, 18mm Super Large Full Icon LCD
  Transducer	Piezoelectric Accelerometer
  Functions	Acceleration, Velocity, Displacement, RPM, Freq.,
  Measuring Range	Velocity: 0.01-19.99cm/s True RMS 0.000-7.870 inch/s Acceleration: 0.1-200.0m/s2 / 0.3-656.2 ft/s2 Displacement: 0.001–2.000mm / 0.04-8.0 inch /Equivalent pk-pk RPM: 60-99990 RPM, Frequency: 1-20kHz
  Measuring Frequency Range	Acceleration: 10Hz-1kHz (1 Mode), 1kHz –10kHz (10 Mode) Velocity: 10 Hz – 1kHz Displacement: 10Hz – 1kHz
  Accuracy	±5%+2 Digits
  Unit Conversion	Metric/Imperial Provided
  Output	AC Output 2.0V peak full scale
  PC Interface	Provided
  Accessories	Magnetic Block Provided
  Optional	RS232 Cable & Software, Headphone
  Power Supply	4x1.5V AAA Battery
  Power Off	Manual or Auto after 5 minutes of last key operation
  Oper. Conditions	0-50°C / <90% RH
  Dimensions	124 x 62 x 30mm
  Carrying Case	Attractive Hard Carrying Case Provided
  Weight	120gms Excluding Batteries
