Digital Torsion Testing Machine

Product Description

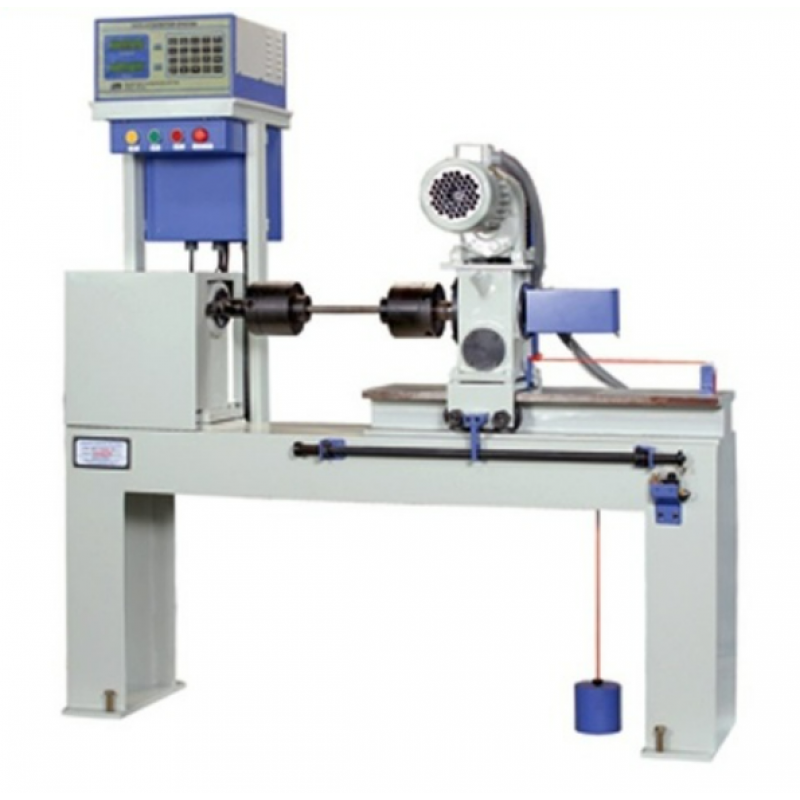

Digital Torsion Testing Machine

The Digital Torsion Testing Machines we offer to clients are suitable for Torsion and twist tests on various metals and rods. Some other exclusive features are given below:

• The torsion measurement is done by torque cell.
• Throughout the range, one range is occurred with a high resolution.
• To apply the torque to specimen through gear box a Geared motor is provided.
• The measurement of angle of twist is done by Rotary Encoder.
• The display of Torque & angle of twist on LCD display is provided on data acquisition system.
• The machines have the facility for connecting the DAS Panel to PC.
• In compliance with machine capacity, the machines have accuracy of torque measurement + 1%, in the range from 4% to 100% .
• Also have provisions to conduct the tests slowly. By handle facilitates findings these machines have modulus of rigidity "G".

Digital Torsion Testing Machine
Sr.	Specifications	MTT-E-	MTT-E-	MTT-E-	MTT-E-	MTT-E-
No.		100 Nm	200 Nm	500 Nm	1000 Nm	2000 Nm
1	Max. torque capacity (Nm)	100	200	500	1000	2000
2	Torque Resolution (Nm)	0.01	0.02	0.05	0.1	0.2
3	Angle of twist (Degree)	0.1	0.1	0.1	0.1	0.1
4	Torsion speed and direction	1.5 RPM	1.5 RPM	1.5 RPM	1.5 RPM	1.5 RPM
		Reverse	Reverse	Reverse	Reverse	Reverse
5	Distance between grips (mm)	0 -400	0 -450	0 -500	0 -600	0 -1000
6	Grips for round bar of dia (mm)	41007	41100	41199	41200	20 -30
		41133	41197	17 -24	18 -26	30 -40
			15 -20	24 -30	26 -34	40 -50
7	Grips for flat bars	40947	40978	41041	41044	41202
	thickness	25	30	40	50	60
	Width	-	-	-	-	-
8	3 Ph, 440V,	0.5	0.5	1	1	2
	50 Hz, AC
	Motor HP Approx
