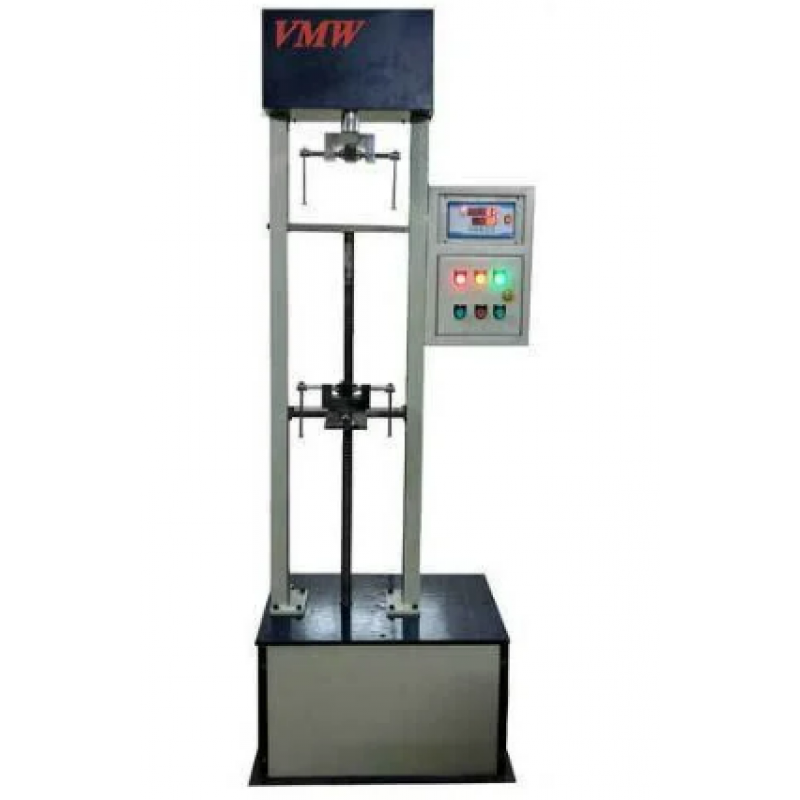

Digital Tensile Testing Machine

Application	Tensile Testing of Materials
Brand	VMW
Capacity	upto 500 KG
Display Type	Digital
Operating Mode	Semi-Automatic
Voltage	Single phase 220V
Number Of Load Cells	1
Power	220 V AC 50 Hz.
Number Of Phases	Single
Distance Between Grip	1000 mm
Power Consumption	220V AC 50 Hz

VMW Digital Tensile Testing Machine Capacity 500 KG is designed as per relevant standards to determine breaking load of any Polymer, Fabric, Yarn Lea, HDPE Bag, Jute Bag, Board, Cable, Plastic sheet and Wire.
Its operation is based on the constant rate of traverse principle in which one end of the test specimen is held in a stationary grip, while the other end is made to move at a known fixed speed with the help of motor, gear box and screw arrangement. The load exerted on the stationary grip is sensed by a load cell and indicated by a digital load indicator. The reading is shown in Kgf (Kilogram Force) or KN (Kilo Newton).
Technical Specification:
S Type Load Cell fixed with Top Grip Traverse Speed - fixed 300 or 500 mm/min or Variable Speed 50 to 500 mm/min Max. Grip Separation –1000 mm Min. Grip Separation – 25 mm Digital Display of Load and Elongation.
Motor: ½ HP Single phase 220V 50 Hz. (for Capacity up to 100 Kg)
Power: 220 V AC 50 Hz.
Safety Device: By Limit Switch to protect from Over Traverse.
