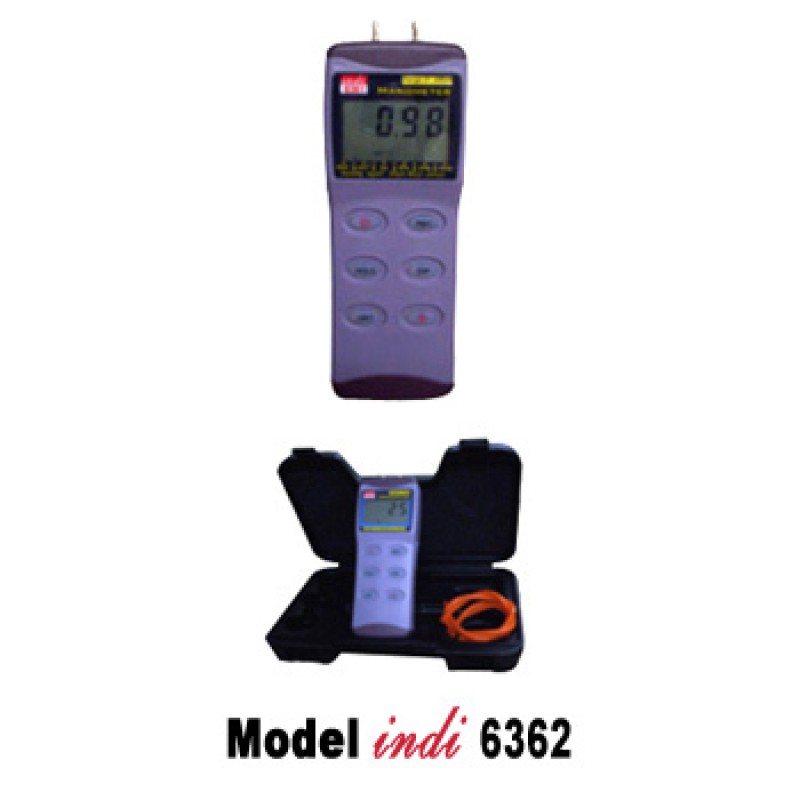

Digital Pressure Cum Vacuum Gauge

Product Details:

Model Name/Number	6362
Brand	Source 1
Shape	Rectangale
Color	Black
Display Type	Digital
Material	Plastic

We are an eminent name, which is engaged in delivering Digital Pressure Cum Vacuum Gauge. The offered range of digital pressure cum vacuum gauges is ideally utilized for observing and recording pneumatic pressures or vacuums. In addition to this, the offered assortment is tested on number of parameters so as to ensure its adherence with the highest quality norms and standards.

Features:

• Dimensionally accurate

• Durable

• High performance

• Superior finish

Specifications :
Display of	Pressure or Differential Pressure
Display	Full Icon LCD
Pressure Range (Resolution)	0 - 2psi (0.004), 0-±138mbar (0.1), 0-±55.4 inH2O (0.01), 0-±1410mmH2O (1), 0-±0.138bar (0.001),
Max Pressure Range	0 - 20psi
Repeatability	±0.2% (±0.5% Max.)
Accuracy	±0.3% of Full Scale at +25°C
Response Time	0.3 Seconds
Combined linearity and hysteresis	±0.29(Max ±1.0)%FSO
Unit Selection	bar, mbar, psi, mmH2O, inH2O
Special Functions	Data Hold, Backlight, Auto Power Off
Battery	9V Battery
Memory Recall	Max. /Min.
RS232 Output	Provided (Software & Cable Optional)
Serial Format	Baud rate 2400 Baud, 1 Stop bit, 8 Data bits. PXXX.XX
Cabinet Size	72 x 182 x 30 mm
Carrying Case	Provided

• Additional Information:

• Item Code: Model-indi-6362
