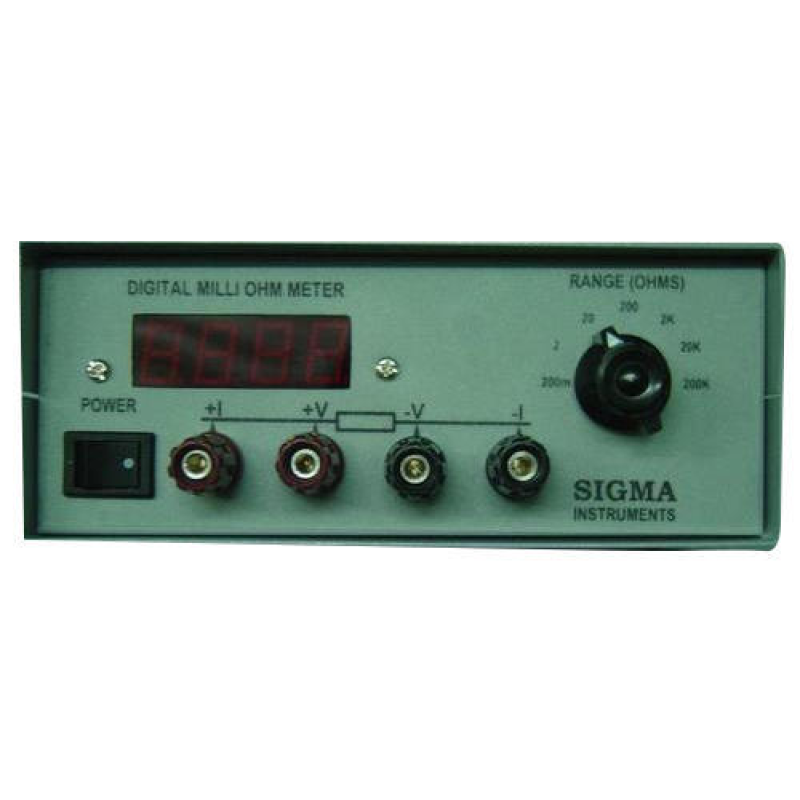

Digital Milli OHM Meter

Storing data	80 groups
Testing Voltage	220 V
Weight	10.5 Kg

The Digital Milli OHM Meter is a precision instrument, which is extremely suitable for measurement of low value resistance.

The instrument uses state of art technology for measurement of low values of resistances. The measuring technique eliminates errors caused due to resistance in the connecting leads. The instrument uses precision low drift integrated circuits to ensure stability of measurement over widely changing
conditions.

Applications:
The Digital Milli-ohmmeter finds application wherever low resistance values are to be measured. It is an asset for electrical and electronic industry. It can be used for finding the resistance of transformer or motor winding. It can be used to calibrate ammeter shunt wires.

Technical Specifications
Display	: 31⁄2 digit panel meter.
Measuring Ranges	200m Ohm; 2 Ohm; 20 Ohm; 200 Ohm; 2 K-Ohm; 20 K-Ohm; 200 K-Ohm
Test Current	Range 199.9m ohm 1.999 ohm 19.99 ohm 199.9 ohm 1.999 K-ohm 19.99 K-ohm 199.9 K-ohm	Current 1.0 A 100 mA 10 mA 1 mA 0.1 mA 0.01 mA 0.01 mA	Resolution 10 micro ohm 100 micro ohm 1 m ohm 10 m ohm 100 m ohm 1 ohm 10 ohm
Measurement Accuracy	: 0.5% ± 3 digit.
Measurement Technique	: 4 terminal measurement
