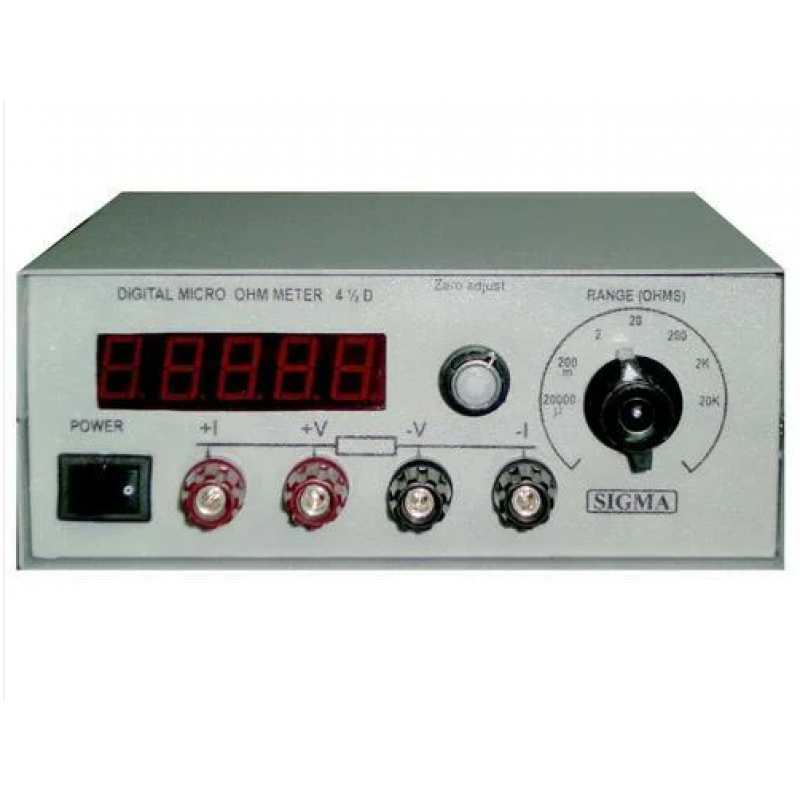

Digital Micro OHM Meter
With affluent industry experience, we are renowned to offer Digital Micro OHM Meter. Our customers can avail these products at reasonable prices.
Applications:
The Digital Micro-ohmmeter finds application wherever low resistance values are to be measured. It is an asset for electrical and electronic industry. It can be used for finding the resistance of transformer or motor winding. It can be used to calibrate ammeter shunt wires.
Technical Specifications | |||
Display | 41⁄2 digit panel meter. | ||
Measuring Ranges | 20000μ ohm; 200m ohm; 2 ohm; 20 ohm; 200 ohm; 2 K-ohm; 20 K-ohm. | ||
Test Current | Range 19999μ ohm 199.99m ohm 1.9999 ohm 19.999 ohm 199.99 ohm 1.9999 K-ohm 19.999 K-ohm | Current 1.0 A 100 mA 10 mA 1 mA 0.1 mA 0.01 mA 0.01 mA | Resolution 1 micro ohm 10 micro ohm 100 micro ohm 1 m ohm 10 m ohm 100 m ohm 1 ohm |
Measurement Accuracy | : 0.5% ± 3 digit. | ||
Measurement Technique | : 4 terminal measurement |
