Digital Insulation tester
| Range (Ohms) | 20 Gohms |
| Model | YOKINS |
| Test Voltage (Volt) | 1000V |
| Usage | Industrial, Laboratory |
| Model Number | YIDIT-1020 |

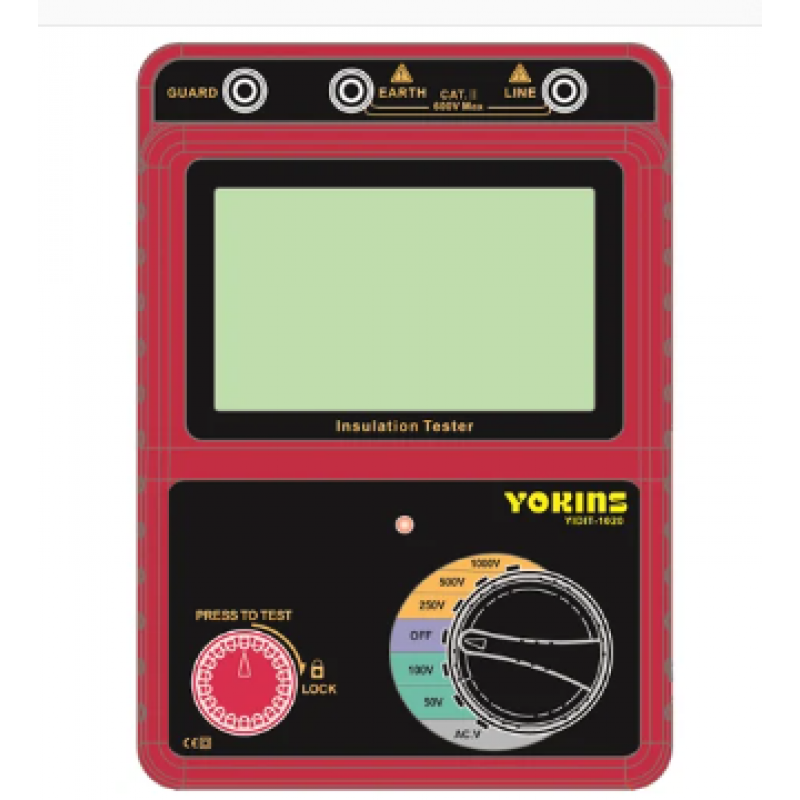

YOKINS DIGITAL INSULATION TESTER YIDIT-1020 (1000V)Model: YIDIT-1020Yokins Digital insulation tester is a battery operated digital insulation tester with multiple voltagerange. This is used to measure insulation resistance range from 0-19.9 G ohms. Can also be usedto measure AC voltages upto 600V ACSpecifications: Ranges: 50V 100MΩ/100V 200MΩ/250V 500MΩ/500V1000MΩ/1000V 20GΩ Rated Voltage: 50V/100V/250V/500V/1000V AC/DC Open Circuit Voltage: DC 50V +10%, -0% ~DC 1000V +20%, -0% Insulation Resistance Testing Range: 0.0MΩ~19.9GΩ Short Circuit Current: 1.3 mA Approx. Insulation Resistance Accuracy ±8% rdg (100K~10GΩ), ±10%rdg (10GΩ~50GΩ) Voltage Measuring Range: 30 ~ 600V(50/60Hz) Voltage Resolution 1V Accuracy ±2%rdg ±3rdg Sampling Rate 0.5 ~ 10 times / sec Operation Condition 0°C ~ 40°C, < 85% RH Storage Condition -20°C ~ 60°C, < 90% RH Over Load Protection Auto Discharge Function Battery Indication Buzzer Alarm GENERAL CHARACTERISTICS & PACKING INFORMATION Power: 6*1.5V AA batteries Product Net Weight: 535,68g Product Size: 125.4 x 174.6 x 69mm
